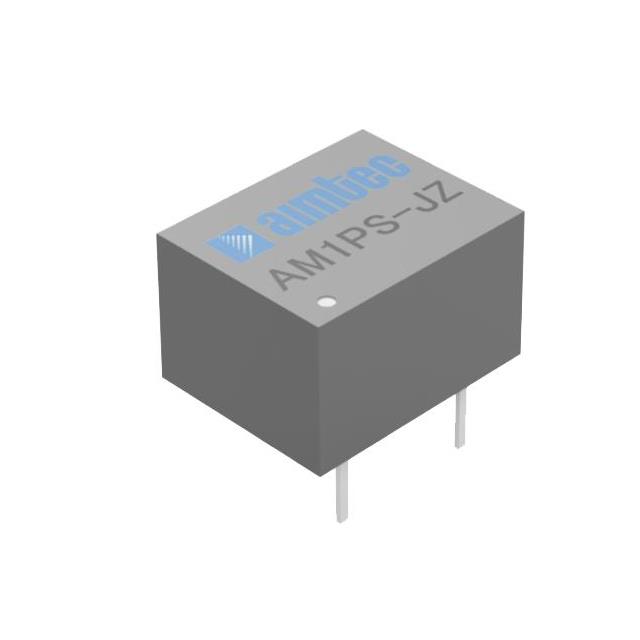

AM1PS-0515SH30JZ

Active

aimtec

DC DC CONVERTER 15V 1W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

AM1PS-0515SH30JZ

Active

aimtec

DC DC CONVERTER 15V 1W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	AM1PS-0515SH30JZ

Applications	ITE (Commercial)
Approval Agency	cULus, cURus
Current - Output (Max) [Max]	67 mA
Efficiency	83 %
Mounting Type	Through Hole
Number of Outputs	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Package / Case	8-DIP Module
Type	Isolated Module
Voltage - Input (Max) [Max]	5.5 V
Voltage - Input (Min) [Min]	4.5 V
Voltage - Isolation	3000 V
Voltage - Output 1	15 V

AM1PS Series

Part	Number of Outputs	Applications	Mounting Type	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Package / Case	Type	Operating Temperature [Max]	Operating Temperature [Min]	Efficiency	Voltage - Input (Max) [Max]	Current - Output (Max) [Max]	Voltage - Input (Min) [Min]	Voltage - Isolation	Voltage - Output 1	Current - Output (Max)	Approval Agency
aimtec AM1PS-1205SZ	1	ITE (Commercial)	Through Hole	0.4 in	0.27 "	0.5 in	6.9 mm	12.7 mm	10.2 mm	8-DIP Module	Isolated Module	85 °C	-40 °C	76 %	13.2 V	200 mA	10.8 V	1000 V	5 V
aimtec AM1PS-1215SZ	1	ITE (Commercial)	Through Hole	0.4 in	0.27 "	0.5 in	6.9 mm	12.7 mm	10.2 mm	8-DIP Module	Isolated Module	85 °C	-40 °C	75 %	13.2 V	66.6 mA	10.8 V	1000 V	15 V
aimtec AM1PS-0512SZ	1	ITE (Commercial)	Through Hole	0.4 in	0.27 "	0.5 in	6.9 mm	12.7 mm	10.2 mm	8-DIP Module	Isolated Module	85 °C	-40 °C	75 %	5.5 V		4.5 V	1000 V	12 V	83.3 mA
aimtec AM1PS-0515SZ	1	ITE (Commercial)	Through Hole	0.4 in	0.27 "	0.5 in	6.9 mm	12.7 mm	10.2 mm	8-DIP Module	Isolated Module	85 °C	-40 °C	73 %	5.5 V	66.6 mA	4.5 V	1000 V	15 V
aimtec AM1PS-1205SH30Z	1	ITE (Commercial)	Through Hole	0.4 in	0.27 "	0.5 in	6.9 mm	12.7 mm	10.2 mm	8-DIP Module	Isolated Module	85 °C	-40 °C	76 %	13.2 V	200 mA	10.8 V	3000 V	5 V
aimtec AM1PS-0524SH30JZ	1	ITE (Commercial)	Through Hole							8-DIP Module	Isolated Module	105 ░C	-40 °C	85 %	5.5 V	42 mA	4.5 V	3000 V	24 V		cULus cURus
aimtec AM1PS-1212SZ	1	ITE (Commercial)	Through Hole	0.4 in	0.27 "	0.5 in	6.9 mm	12.7 mm	10.2 mm	8-DIP Module	Isolated Module	85 °C	-40 °C	75 %	13.2 V		10.8 V	1000 V	12 V	83.3 mA
aimtec AM1PS-0515SH30JZ	1	ITE (Commercial)	Through Hole							8-DIP Module	Isolated Module	105 ░C	-40 °C	83 %	5.5 V	67 mA	4.5 V	3000 V	15 V		cULus cURus
aimtec AM1PS-1215SH30Z	1	ITE (Commercial)	Through Hole	0.4 in	0.27 "	0.5 in	6.9 mm	12.7 mm	10.2 mm	8-DIP Module	Isolated Module	85 °C	-40 °C	75 %	13.2 V	66.6 mA	10.8 V	3000 V	15 V
aimtec AM1PS-0512SH30Z	1	ITE (Commercial)	Through Hole	0.4 in	0.27 "	0.5 in	6.9 mm	12.7 mm	10.2 mm	8-DIP Module	Isolated Module	85 °C	-40 °C	74 %	5.5 V		4.5 V	3000 V	12 V	83.3 mA

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 4.19
		5	$ 4.13
		10	$ 4.07
		25	$ 3.95
		40	$ 3.83
		80	$ 3.71
		160	$ 3.59

Description

General part information

AM1PS Series

Isolated Module DC DC Converter 1 Output 15V 67mA 4.5V - 5.5V Input
