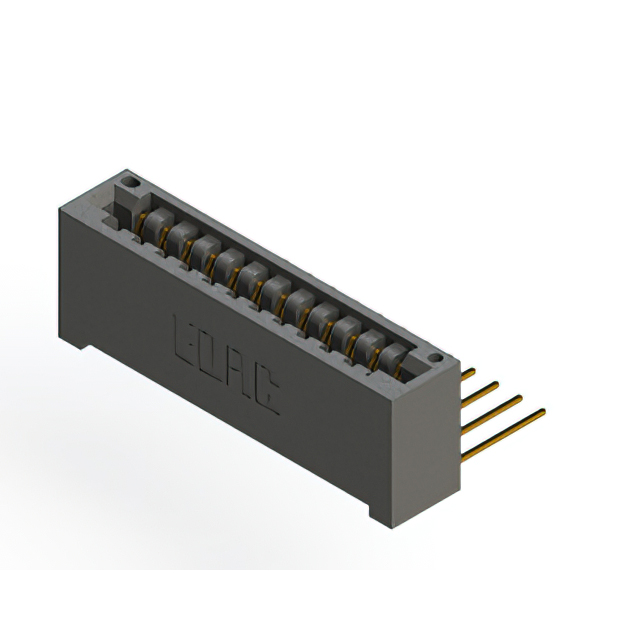

896-012-558-101

Active

EDAC Inc.

CONN EDGE SGL FMALE 12POS 0.125

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

896-012-558-101

Active

EDAC Inc.

CONN EDGE SGL FMALE 12POS 0.125

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	896-012-558-101

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Single Edge
Color	Black
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Contact Type	Cantilever
Gender	Female
Material - Insulation	Polyphenylene Sulfide (PPS)
Mounting Type	Through Hole, Right Angle
Number of Positions	12
Number of Positions/Bay/Row [custom]	12
Number of Rows	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.125 in
Pitch [x]	3.18 mm
Read Out	Single
Termination	Solder
Termination Rows	1

896-012 Series

...

Part	Flange Feature [diameter]	Flange Feature	Flange Feature [diameter]	Number of Positions/Bay/Row [custom]	Operating Temperature [Max]	Operating Temperature [Min]	Read Out	Card Type	Termination	Contact Finish Thickness	Contact Finish Thickness	Mounting Type	Number of Rows	Contact Finish	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Contact Material	Material - Insulation	Gender	Color	Contact Type	Pitch [x]	Pitch [x]	Termination Rows	Number of Positions	Flange Feature	Flange Feature	Features
EDAC Inc. 896-012-522-212	3.25 mm	Flush Mount Side Opening Unthreaded	0.128 "	6	125 °C	-40 °C	Dual	Non Specified - Dual Edge	Solder	10 Áin	0.25 Ám	Through Hole	2	Gold	1.37 mm	0.054 "	1.78 mm	0.07 in	Copper Alloy	Polyphenylene Sulfide (PPS)	Female	Black	Cantilever	0.125 in	3.18 mm	2	12
EDAC Inc. 896-012-540-207		Flush Mount M3 Threaded Insert Top Opening		6	125 °C	-40 °C	Dual	Non Specified - Dual Edge	Wire Wrap	10 Áin	0.25 Ám	Through Hole	2	Gold	1.37 mm	0.054 "	1.78 mm	0.07 in	Copper Alloy	Polyphenylene Sulfide (PPS)	Female	Black	Cantilever	0.125 in	3.18 mm	2	12
EDAC Inc. 896-012-559-607		M3 Threaded Insert Top Mount Opening		12	125 °C	-40 °C	Single	Non Specified - Single Edge	Solder	10 Áin	0.25 Ám	Through Hole Right Angle	1	Gold	1.37 mm	0.054 "	1.78 mm	0.07 in	Copper Alloy	Polyphenylene Sulfide (PPS)	Female	Black	Cantilever	0.125 in	3.18 mm	1	12
EDAC Inc. 896-012-522-603	2.95 mm	Floating Bobbin Top Mount Opening	0.116 in	12	125 °C	-40 °C	Single	Non Specified - Single Edge	Solder	10 Áin	0.25 Ám	Through Hole	1	Gold	1.37 mm	0.054 "	1.78 mm	0.07 in	Copper Alloy	Polyphenylene Sulfide (PPS)	Female	Black	Cantilever	0.125 in	3.18 mm	1	12
EDAC Inc. 896-012-526-612		Side Mount Opening Unthreaded		12	125 °C	-40 °C	Single	Non Specified - Single Edge	Solder	10 Áin	0.25 Ám	Through Hole	1	Gold	1.37 mm	0.054 "	1.78 mm	0.07 in	Copper Alloy	Polyphenylene Sulfide (PPS)	Female	Black	Cantilever	0.125 in	3.18 mm	1	12	3.25 mm	0.128 in
EDAC Inc. 896-012-559-212	3.25 mm	Flush Mount Side Opening Unthreaded	0.128 "	6	125 °C	-40 °C	Dual	Non Specified - Dual Edge	Solder	10 Áin	0.25 Ám	Through Hole Right Angle	2	Gold	1.37 mm	0.054 "	1.78 mm	0.07 in	Copper Alloy	Polyphenylene Sulfide (PPS)	Female	Black	Cantilever	0.125 in	3.18 mm	2	12
EDAC Inc. 896-012-500-804	3.96 mm	Top Mount Opening Unthreaded	0.156 in	6	125 °C	-40 °C	Dual	Non Specified - Dual Edge	Solder Eyelet(s)	10 Áin	0.25 Ám	Through Hole	2	Gold	1.37 mm	0.054 "	1.78 mm	0.07 in	Copper Alloy	Polyphenylene Sulfide (PPS)	Female	Black	Cantilever	0.125 in	3.18 mm	2	12
EDAC Inc. 896-012-556-201				6	125 °C	-40 °C	Dual	Non Specified - Dual Edge	Solder	10 Áin	0.25 Ám	Board Edge Straddle Mount	2	Gold	1.37 mm	0.054 "	1.78 mm	0.07 in	Copper Alloy	Polyphenylene Sulfide (PPS)	Female	Black	Cantilever	0.125 in	3.18 mm	2	12			Card Extender
EDAC Inc. 896-012-526-607		M3 Threaded Insert Top Mount Opening		12	125 °C	-40 °C	Single	Non Specified - Single Edge	Solder	10 Áin	0.25 Ám	Through Hole	1	Gold	1.37 mm	0.054 "	1.78 mm	0.07 in	Copper Alloy	Polyphenylene Sulfide (PPS)	Female	Black	Cantilever	0.125 in	3.18 mm	1	12
EDAC Inc. 896-012-558-101				12	125 °C	-40 °C	Single	Non Specified - Single Edge	Solder	10 Áin	0.25 Ám	Through Hole Right Angle	1	Gold	1.37 mm	0.054 "	1.78 mm	0.07 in	Copper Alloy	Polyphenylene Sulfide (PPS)	Female	Black	Cantilever	0.125 in	3.18 mm	1	12

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 50.45
Newark	Each	1	$ 60.55
		100	$ 46.50
		250	$ 40.50
		500	$ 34.50
		1000	$ 26.25

Description

General part information

896-012 Series

12 Position Female Connector Non Specified - Single Edge Gold 0.125" (3.18mm) Black
