A14162-12

Obsolete

Laird Technologies - Thermal Materials

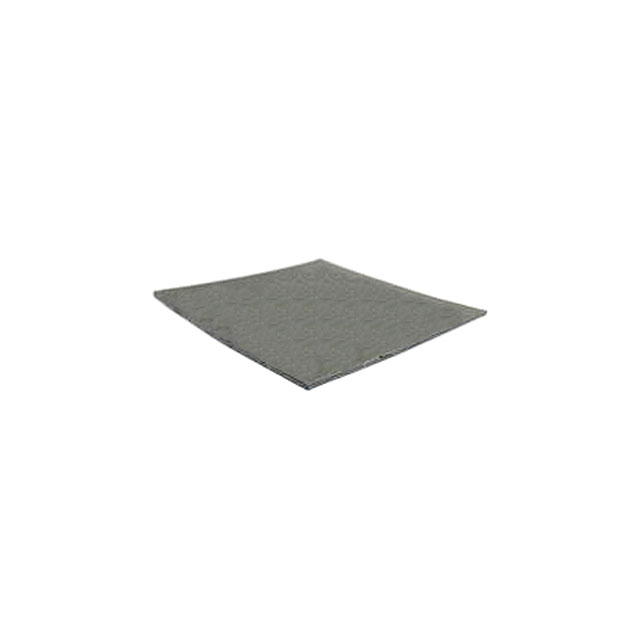

THERM PAD 457.2X457.2MM GRAY

Search across all available documentation for this part.

Obsolete

Laird Technologies - Thermal Materials

THERM PAD 457.2X457.2MM GRAY

Technical Specifications

Parameters and characteristics for this part

Part	Shape	Thermal Conductivity	Adhesive	Thickness	Thickness	Type	Outline [y]	Outline [x]	Color	Thermal Resistivity
Laird Technologies - Thermal Materials A14162-12	Square	1.1 W/m-K	Tacky - Both Sides	2.286 mm	0.09 in	Gap Filler Pad Sheet	457.2 mm	457.2 mm	Gray
Laird Technologies - Thermal Materials A14162-02	Square	1.1 W/m-K	Tacky - Both Sides	80 mils	0.08 "	Gap Filler Pad Sheet	457.2 mm	457.2 mm	Gray	2.51 °C/W
Laird Technologies - Thermal Materials A14162-44	Square	1.1 W/m-K	Tacky - Both Sides	1.778 mm	0.07 in	Gap Filler Pad Sheet	457.2 mm	457.2 mm	Gray
Laird Technologies - Thermal Materials A14162-43	Square	1.1 W/m-K	Tacky - Both Sides	1.524 mm	0.06 in	Gap Filler Pad Sheet	457.2 mm	457.2 mm	Gray

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Thermal Pad Gray 457.20mm x 457.20mm Square Tacky - Both Sides
