16982-7SG-522
ActiveConxall/Switchcraft

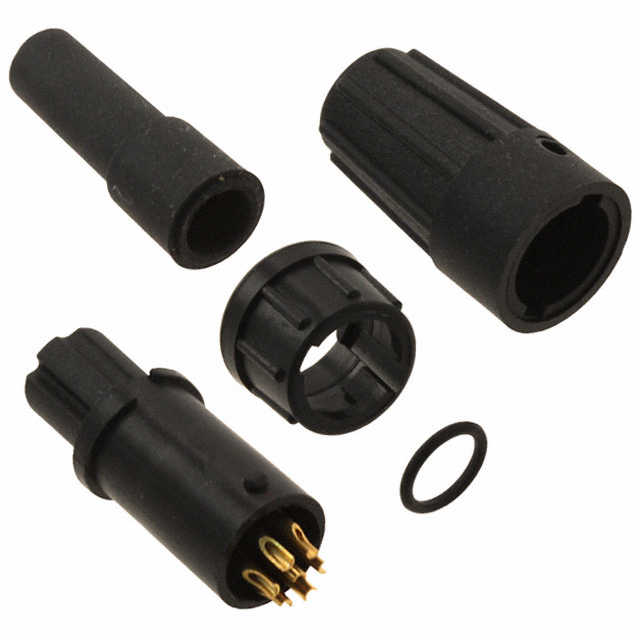

CONN PLUG FMALE 7P GOLD SLDR CUP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
16982-7SG-522
ActiveConxall/Switchcraft
CONN PLUG FMALE 7P GOLD SLDR CUP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 16982-7SG-522 |
|---|---|
| Applications | Medical, Data, Instrumentation, Industrial |
| Backshell Material, Plating | Thermoplastic |
| Cable Opening [Max] [diameter] | 5.84 mm |
| Cable Opening [Max] [diameter] | 0.23 in |
| Cable Opening [Min] [diameter] | 0.22 in |
| Cable Opening [Min] [diameter] | 5.59 mm |
| Color | Black |
| Connector Type | Female Sockets, Plug |
| Contact Finish - Mating | Gold |
| Contact Material | Copper Alloy |
| Current Rating (Amps) | 3.5 A |
| Fastening Type | Bayonet Lock |
| Features | Backshell |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Material Flammability Rating | UL94 HB |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 7 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Orientation | B |
| Primary Material | Plastic |
| Shielding | Unshielded |
| Voltage Rating | 600 VAC |
