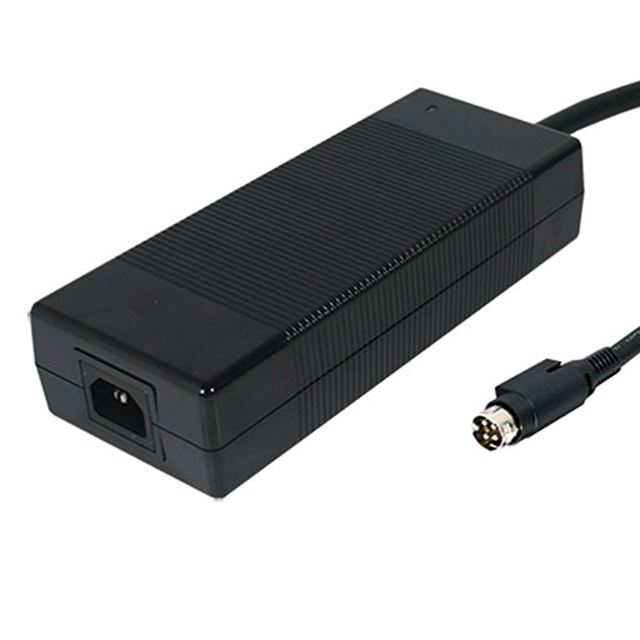

GC220A48-AD1
ActiveMEAN WELL USA Inc.
BATT CHARGER DESKTOP 54.4V 4A
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
GC220A48-AD1
ActiveMEAN WELL USA Inc.
BATT CHARGER DESKTOP 54.4V 4A
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | GC220A48-AD1 |
|---|---|
| Approval Agency | GS, CB, UL, CE, cULus |
| Battery Cell Size | 48 V |
| Battery Chemistry | Lithium-Ion, Lead Acid |
| Charge Current - Max [Max] | 4 A |
| Features | LED Indicator |
| Mounting Type | Desktop |
| Number of Cells | 1 |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | -30 ░C |
| Power - Max [Max] | 217.6 W |
| Size / Dimension [x] | 210 mm |
| Size / Dimension [x] | 8.27 in |
| Size / Dimension [y] | 85 mm |
| Size / Dimension [y] | 3.35 in |
| Size / Dimension [z] | 46 mm |
| Size / Dimension [z] | 1.81 " |
| Termination Style | Rectangular Connector |
| Type | Desktop |
| Voltage - Input [Max] | 264 VAC |
| Voltage - Input [Min] | 90 VAC |
| Voltage - Nominal | 54.4 V |
| Weight | 1100 g |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 79.15 | |
| 5 | $ 75.38 | |||
| 10 | $ 73.82 | |||
| 25 | $ 71.79 | |||
Description
General part information
GC220A48 Series
Desktop Battery Charger 54.4V 4A 48V
