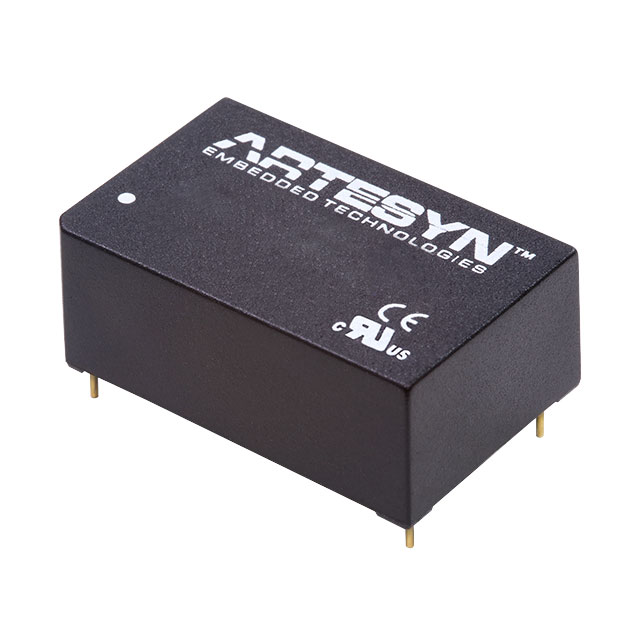

ASA01B48-M
ActiveARTESYN / Advanced Energy
DC DC CONVERTER 12V 5W
Deep-Dive with AI
Search across all available documentation for this part.
ASA01B48-M
ActiveARTESYN / Advanced Energy
DC DC CONVERTER 12V 5W
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | ASA01B48-M |
|---|---|
| Applications | ITE (Commercial) |
| Current - Output (Max) [Max] | 500 mA |
| Efficiency | 80 % |
| Features | OCP, SCP |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 75 ░C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 24-DIP Module, 5 Leads |
| Power (Watts) | 5 W |
| Size / Dimension [x] | 1.25 " |
| Size / Dimension [x] | 31.8 mm |
| Size / Dimension [y] | 0.8 in |
| Size / Dimension [y] | 20.3 mm |
| Size / Dimension [z] | 10.4 mm |
| Size / Dimension [z] | 0.41 " |
| Type | Isolated Module |
| Voltage - Input (Max) [Max] | 75 V |
| Voltage - Input (Min) [Min] | 36 V |
| Voltage - Isolation | 4000 V |
| Voltage - Output 1 | 12 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 10 | $ 52.84 | |
Description
General part information
ASA01B Series
Isolated Module DC DC Converter 1 Output 12V 500mA 36V - 75V Input
