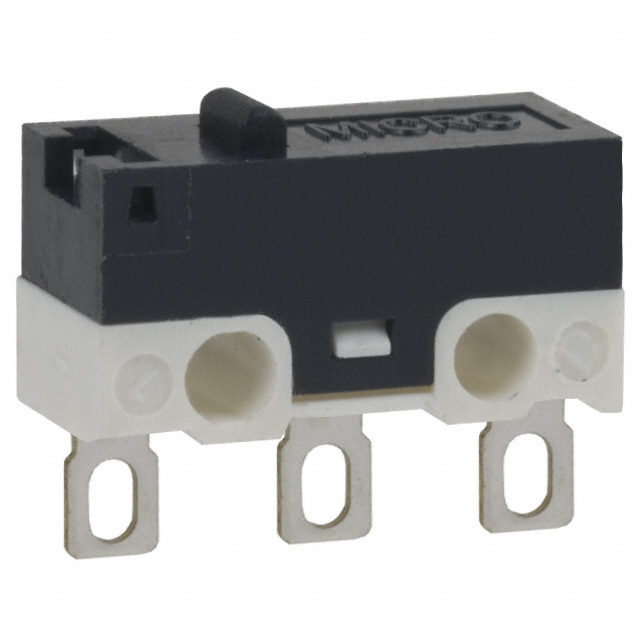

ZX10E10A01

Active

Honeywell Sensing and Productivity Solutions

SWITCH SNAP ACT SPDT 100MA 48V

Search across all available documentation for this part.

Active

Honeywell Sensing and Productivity Solutions

SWITCH SNAP ACT SPDT 100MA 48V

Technical Specifications

Parameters and characteristics for this part

Part	Current Rating (Amps)	Mounting Type	Pretravel	Pretravel	Operating Force	Mechanical Life	Circuit	Switch Function	Differential Travel	Differential Travel	Overtravel	Overtravel	Operating Position [custom]	Operating Position [custom]	Operating Temperature [Min]	Operating Temperature [Max]	Actuator Type	Electrical Life	Voltage Rating - DC	Release Force	Termination Style	Operating Position	Operating Position	Operating Position [x]	Operating Position [x]
Honeywell Sensing and Productivity Solutions ZX10E50E01	100 mA	Through Hole Right Angle	0.15 in	3.8 mm	55 gf	1000000 Cycles	SPDT	On-Mom	0.05 in	1.3 mm	0.6 mm	0.025 "	0.437 "	11.1 mm	-40 °C	120 °C	Lever Simulated Roller	1000000 Cycles	48 V	8 gf	PC Pin
Honeywell Sensing and Productivity Solutions ZX10E50C01	100 mA	Through Hole Right Angle	0.134 in	3.4 mm	48 gf	1000000 Cycles	SPDT	On-Mom	0.05 in	1.3 mm	0.6 mm	0.025 "			-40 °C	120 °C	Lever Straight	1000000 Cycles	48 V	8 gf	PC Pin	8.4 mm	0.33 in
Honeywell Sensing and Productivity Solutions ZX10E10E01	100 mA	Chassis Mount	0.15 in	3.8 mm	55 gf	1000000 Cycles	SPDT	On-Mom	0.05 in	1.3 mm	0.6 mm	0.025 "	0.437 "	11.1 mm	-40 °C	120 °C	Lever Simulated Roller	1000000 Cycles	48 V	8 gf	Solder Lug
Honeywell Sensing and Productivity Solutions ZX10E10A01	100 mA	Chassis Mount	0.051 in	1.3 mm	150 gf	1000000 Cycles	SPDT	On-Mom	0.012 "	0.3 mm	0.2 mm	0.008 in			-40 °C	120 °C	Round (Pin Plunger)	1000000 Cycles	48 V	20 gf	Solder Lug			0.276 in	7 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1000	$ 1.59

General part information

Switch SPDT Chassis Mount
