PXD60-24WS24

Active

TDK-LAMBDA

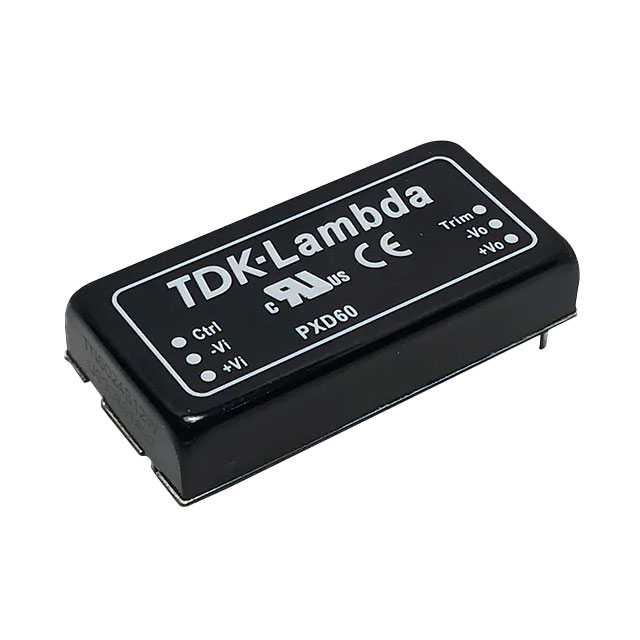

CONVERTER: DC/DC; 60W; UIN: 9÷36VDC; UOUT: 24VDC; IOUT: 2.5A; THT

Search across all available documentation for this part.

Active

TDK-LAMBDA

CONVERTER: DC/DC; 60W; UIN: 9÷36VDC; UOUT: 24VDC; IOUT: 2.5A; THT

Technical Specifications

Parameters and characteristics for this part

Specification	PXD60-24WS24

Applications	ITE (Commercial)
Approval Agency	UKCA, CE
Control Features	Active High, Enable
Current - Output (Max) [Max]	2.5 A
Efficiency	92 %
Features	Remote On/Off, Adjustable Output, Remote Sense
Mounting Type	Through Hole
Number of Outputs	1
Operating Temperature [Max]	105 C
Operating Temperature [Min]	-40 °C
Package / Case	6-DIP Module
Power (Watts)	60 W
Size / Dimension [x]	2 in
Size / Dimension [x]	50.8 mm
Size / Dimension [y]	25.4 mm
Size / Dimension [y]	25.4 mm
Size / Dimension [z]	0.4 "
Size / Dimension [z]	10.2 mm
Standard Number	62368-1
Type	Isolated Module
Voltage - Input (Max) [Max]	36 V
Voltage - Input (Min) [Min]	9 V
Voltage - Isolation	1.6 kV
Voltage - Output 1	24 V

Part	Efficiency	Number of Outputs	Power (Watts)	Standard Number	Current - Output (Max) [Max]	Voltage - Output 1	Operating Temperature [Min]	Operating Temperature [Max]	Approval Agency	Control Features	Type	Mounting Type	Voltage - Isolation	Voltage - Input (Max) [Max]	Voltage - Input (Min) [Min]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Package / Case	Features	Applications
TDK-LAMBDA PXD60-24WS24	92 %	1	60 W	62368-1	2.5 A	24 V	-40 °C	105 C	CE UKCA	Active High Enable	Isolated Module	Through Hole	1.6 kV	36 V	9 V	25.4 mm	0.4 "	2 in	10.2 mm	50.8 mm	25.4 mm	6-DIP Module	Adjustable Output Remote On/Off Remote Sense	ITE (Commercial)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	10	$ 119.30
Newark	Each	1	$ 140.61
TME	N/A	1	$ 137.25
		5	$ 128.65
		10	$ 123.70

General part information

Isolated Module DC DC Converter 1 Output 24V 2.5A 9V - 36V Input
