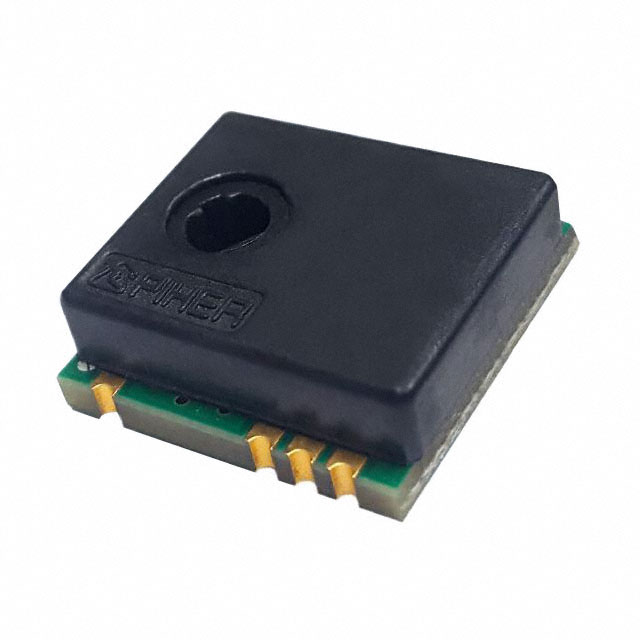

MTS360-2AA-C0002-ERA360-05K

Obsolete

Amphenol Piher Sensing Systems

SENSOR ANGLE 360DEG SMD

Search across all available documentation for this part.

Obsolete

Amphenol Piher Sensing Systems

SENSOR ANGLE 360DEG SMD

Technical Specifications

Parameters and characteristics for this part

Specification	MTS360-2AA-C0002-ERA360-05K

Actuator Type	Hole for Shaft
For Measuring	Linear, Rotary, Angle
Linearity	1 %
Mounting Type	Surface Mount
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Output	Analog Voltage
Output Signal	Clockwise Increase
Package / Case	16-SMD Module, 8 Leads
Rotation Angle - Electrical, Mechanical [Max]	360 °
Rotation Angle - Electrical, Mechanical [Min]	0 °
Technology	Hall Effect
Termination Style	SMD (SMT) Tab
Voltage - Supply [Max]	5 V
Voltage - Supply [Min]	4.5 V

Part	Package / Case	For Measuring	Linearity	Termination Style	Actuator Type	Output Signal	Voltage - Supply [Min]	Voltage - Supply [Max]	Output	Mounting Type	Rotation Angle - Electrical, Mechanical [Max]	Rotation Angle - Electrical, Mechanical [Min]	Technology	Operating Temperature [Max]	Operating Temperature [Min]
Amphenol Piher Sensing Systems MTS360-2AA-C0002-ERA360-05K	16-SMD Module 8 Leads	Angle Linear Rotary	1 %	SMD (SMT) Tab	Hole for Shaft	Clockwise Increase	4.5 V	5 V	Analog Voltage	Surface Mount	360 °	0 °	Hall Effect	125 °C	-40 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Hall Effect Sensor Angle, Linear, Rotary Hole for Shaft SMD (SMT) Tab
