LZ9-J0CW00-0000

Obsolete

ams-OSRAM USA INC.

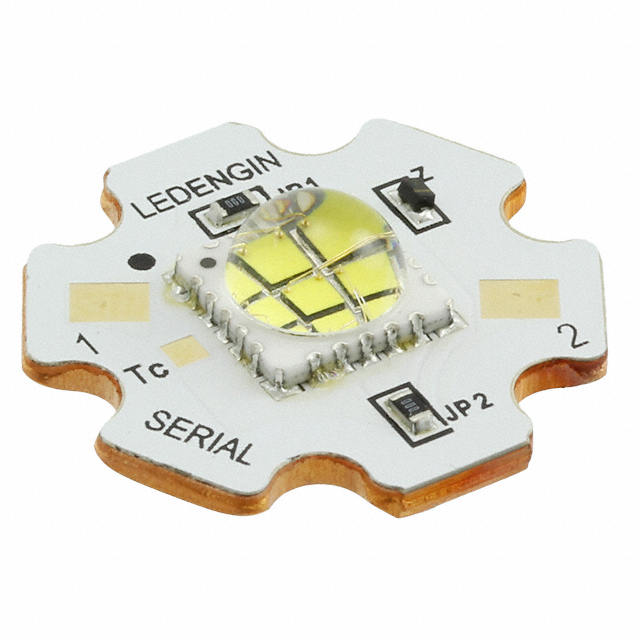

LED MOD LZ9 WHT STARBOARD 6500K

Deep-Dive with AI

Search across all available documentation for this part.

LZ9-J0CW00-0000

Obsolete

ams-OSRAM USA INC.

LED MOD LZ9 WHT STARBOARD 6500K

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	LZ9-J0CW00-0000

CCT (K) [Max]	6500 K
CCT (K) [Min]	5000 K
Color	Cool, White
Configuration	Starboard
Current - Max [Max]	800 mA
Height [z]	5.5 mm
Lens Type	Domed
Light Emitting Surface (LES) [diameter]	6.2 mm
Lumens/Watt @ Current - Test	88 lm/W
Luminous Flux @ Current/Temperature	1800 lm
Size / Dimension [diameter]	19.9 mm
Type	LED Module
Viewing Angle	110 °
Voltage - Forward (Vf) (Typ)	29.1 V

LZ9-J0 Series

Part	Configuration	Size / Dimension [diameter]	CRI (Color Rendering Index)	Viewing Angle	Lens Type	Light Emitting Surface (LES) [diameter]	Luminous Flux @ Current/Temperature [Min]	Luminous Flux @ Current/Temperature	Luminous Flux @ Current/Temperature [Max]	Color	Voltage - Forward (Vf) (Typ)	Lumens/Watt @ Current - Test	Type	Current - Max [Max]	Height [z]	CCT (K)	CCT (K)	CCT (K) [Max]	CCT (K) [Min]
ams-OSRAM USA INC. LZ9-J0GW00-0430	Starboard	19.9 mm	95	115 °	Domed	6.2 mm	868 lm	1060 lm	1357 lm	Warm White	29.1 V	52 lm/W	LED Module	800 mA	5.5 mm
ams-OSRAM USA INC. LZ9-J0WW00-0235	Starboard	19.9 mm	82	110 °	Domed	6.2 mm	1085 lm	1391 lm	1696 lm	Warm White	29.1 V	68 lm/W	LED Module	800 mA	5.5 mm	3500 K
ams-OSRAM USA INC. LZ9-J0WW00-0027	Starboard	19.9 mm	82	110 °	Domed	6.2 mm	1085 lm	1391 lm	1696 lm	Warm White	29.1 V	68 lm/W	LED Module	800 mA	5.5 mm	2700 K
ams-OSRAM USA INC. LZ9-J0GW00-0028	Starboard	19.9 mm	95	110 °	Domed	6.2 mm		1113 lm		Warm White	29.1 V	55 lm/W	LED Module	1.06 A	5.5 mm	2850 K	3-Step MacAdam Ellipse
ams-OSRAM USA INC. LZ9-J0WW00-0035	Starboard	19.9 mm	82	110 °	Domed	6.2 mm	1085 lm	1391 lm	1696 lm	Warm White	29.1 V	68 lm/W	LED Module	800 mA	5.5 mm	3500 K
ams-OSRAM USA INC. LZ9-J0WW00-0430	Starboard	19.9 mm	82	110 °	Domed	6.2 mm	1085 lm	1391 lm	1696 lm	Warm White	29.1 V	68 lm/W	LED Module	800 mA	5.5 mm
ams-OSRAM USA INC. LZ9-J0WW00-0427	Starboard	19.9 mm	82	110 °	Domed	6.2 mm	1085 lm	1391 lm	1696 lm	Warm White	29.1 V	68 lm/W	LED Module	800 mA	5.5 mm	2700 K
ams-OSRAM USA INC. LZ9-J0CW00-0000	Starboard	19.9 mm		110 °	Domed	6.2 mm		1800 lm		Cool White	29.1 V	88 lm/W	LED Module	800 mA	5.5 mm			6500 K	5000 K
ams-OSRAM USA INC. LZ9-J0CW00-0055	Starboard	19.9 mm		110 °	Domed	6.2 mm	1357 lm	1739 lm	2120 lm	Cool White	29.1 V	85 lm/W	LED Module	1.8 A	5.5 mm	5500 K

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

LZ9-J0 Series

LED Lighting COBs Engines Modules LED Module LZ9 White, Cool Starboard
