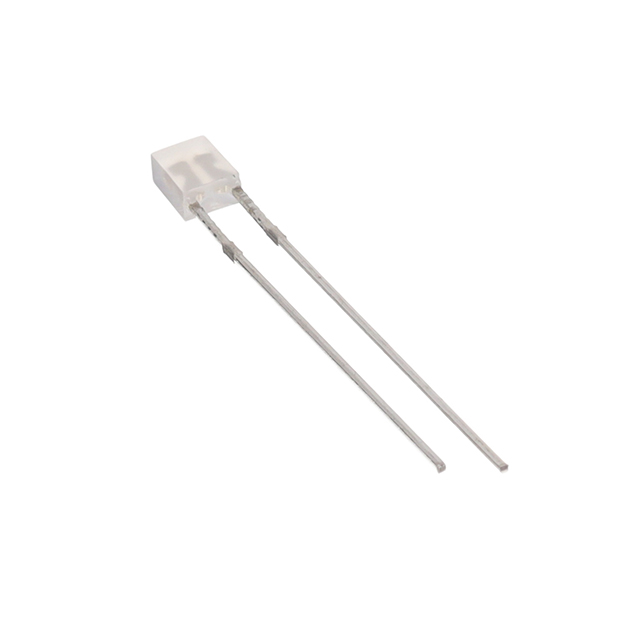

R3BC
ActiveBivar Inc.
LED, THROUGH HOLE, 2X3MM RECT BI-COLOR, RED/GREEN, (625NM/568NM), (3MCD/2.5MCD), WHITE DIFFUSED LENS, 120 DEG VIEWING ANGLE / BA
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
R3BC
ActiveBivar Inc.
LED, THROUGH HOLE, 2X3MM RECT BI-COLOR, RED/GREEN, (625NM/568NM), (3MCD/2.5MCD), WHITE DIFFUSED LENS, 120 DEG VIEWING ANGLE / BA
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | R3BC |
|---|---|
| Color | Red, Green |
| Configuration | Bidirectional |
| Current - Test | 20 mA, 20 mA |
| Height (Max) [Max] [z] | 4 mm |
| Lens Color | White |
| Lens Size [x] | 3.3 mm |
| Lens Size [y] | 1.9 mm |
| Lens Style | Rectangle with Flat Top |
| Lens Transparency | Diffused |
| Millicandela Rating | 3 mcd, 2.5 mcd |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Viewing Angle | 120 ° |
| Voltage - Forward (Vf) (Typ) | 2 V, 2.1 V |
| Wavelength - Peak | 568 nm, 625 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
R3BC Series
Green, Red LED Indication - Discrete 2.1V Green, 2V Red Radial
