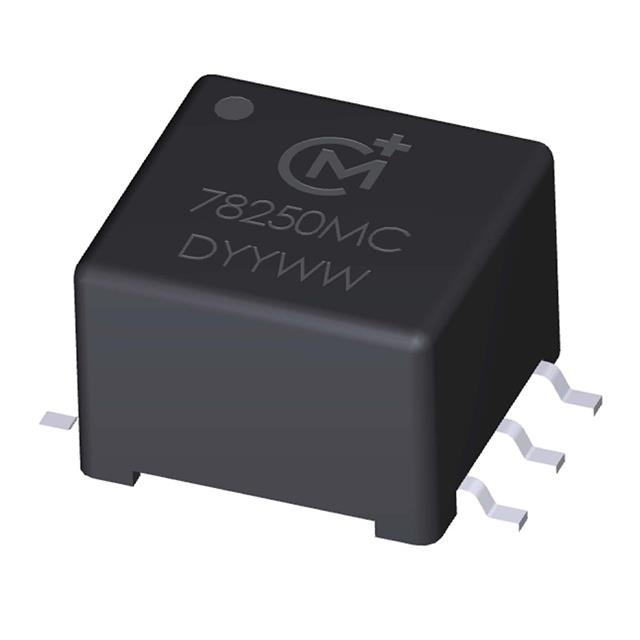

78250MC-R

Murata Power Solutions Inc.

XFRMR MAX250 1.5KVDC 2.5 MH SMD

Search across all available documentation for this part.

Murata Power Solutions Inc.

XFRMR MAX250 1.5KVDC 2.5 MH SMD

Technical Specifications

Parameters and characteristics for this part

Specification	78250MC-R

For Use With/Related Products	MAX250/MAX251
Height - Seated (Max)	6.35 mm
Height - Seated (Max) [Max]	0.25 in
Inductance	2 mH
Mounting Type	Surface Mount

Part	Mounting Type	Inductance	For Use With/Related Products	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Weight	Weight	Height - Seated (Max)	Height - Seated (Max) [Max]	Weight
Murata Power Solutions Inc. 78250C	Through Hole	2 mH	MAX250 MAX251	0.26 in	6.6 mm	0.04 oz	1.14 g
Murata Power Solutions Inc. 78250MVC	Surface Mount	2 mH	MAX250 MAX251	0.26 in	6.6 mm	0.04 oz	1.14 g
Murata Power Solutions Inc. 78250JVC-R	Surface Mount	2 mH	MAX250/MAX251					6.35 mm	0.25 in
Murata Power Solutions Inc. 78250VC	Through Hole	2 mH	MAX250 MAX251	0.26 in	6.6 mm	0.04 oz	1.14 g
Murata Power Solutions Inc. 78250JC	Surface Mount	2 mH	MAX250 MAX251	0.26 in	6.6 mm	0.91 g				0.002 lb
Murata Power Solutions Inc. 78250MVC-R	Surface Mount	2 mH	MAX250/MAX251					6.35 mm	0.25 in
Murata Power Solutions Inc. 78250JC-R	Surface Mount	2 mH	MAX250/MAX251					6.35 mm	0.25 in
Murata Power Solutions Inc. 78250MC-R	Surface Mount	2 mH	MAX250/MAX251					6.35 mm	0.25 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 1.96
	Digi-Reel®	1	$ 1.96
	Tape & Reel (TR)	500	$ 2.10
		1000	$ 1.96
Newark	Each	500	$ 2.31
		1000	$ 2.22

General part information

XFRMR MAX250 1.5KVDC 2.5 MH SMD
