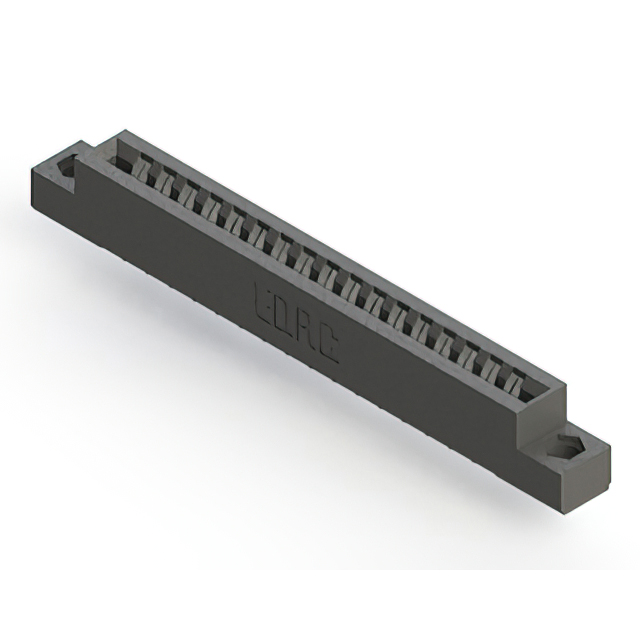

356-017-421-104
ActiveEDAC Inc.
CARD EDGE CONNECTOR ROHS COMPLIANT: YES
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
356-017-421-104
ActiveEDAC Inc.
CARD EDGE CONNECTOR ROHS COMPLIANT: YES
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 356-017-421-104 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Black |
| Contact Finish | Tin |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | Flush Mount, Top Opening, Unthreaded |
| Flange Feature [diameter] | 3.96 mm |
| Flange Feature [diameter] | 0.156 in |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Through Hole, Panel Mount |
| Number of Positions | 34 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.156 in |
| Pitch [x] | 3.96 mm |
| Read Out | Dual |
| Termination | Solder |
| Termination Rows | 1 |
356-017 Series
| Part | Material - Insulation | Number of Rows | Gender | Contact Finish | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Color | Pitch [x] | Pitch [x] | Contact Finish Thickness | Contact Finish Thickness | Operating Temperature [Min] | Operating Temperature [Max] | Termination | Read Out | Number of Positions | Contact Material | Contact Type | Termination Rows | Card Type | Mounting Type | Features | Flange Feature | Flange Feature [diameter] | Flange Feature [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Polyester Thermoplastic | 2 | Female | Gold | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Black | 0.156 in | 3.96 mm | 10 Áin | 0.25 Ám | -40 °C | 105 ░C | Solder | Dual | 34 | Copper Alloy | Cantilever | 1 | Non Specified - Dual Edge | Through Hole | ||||
EDAC Inc. | Polyester Thermoplastic | 2 | Female | Tin | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Black | 0.156 in | 3.96 mm | -40 °C | 105 ░C | Solder Eyelet(s) | Dual | 34 | Copper Alloy | Cantilever | 1 | Non Specified - Dual Edge | Card Guides | 4-40 Flush Mount Threaded Insert Top Opening | |||||
EDAC Inc. | Polyester Thermoplastic | 2 | Female | Gold | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Black | 0.156 in | 3.96 mm | 10 Áin | 0.25 Ám | -40 °C | 105 ░C | Solder | Dual | 34 | Copper Alloy | Cantilever | 1 | Non Specified - Dual Edge | Panel Mount Through Hole | 4-40 Flush Mount Threaded Insert Top Opening | |||
EDAC Inc. | Polyester Thermoplastic | 2 | Female | Gold | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Black | 0.156 in | 3.96 mm | 10 Áin | 0.25 Ám | -40 °C | 105 ░C | Solder | Dual | 34 | Copper Alloy | Cantilever | 1 | Non Specified - Dual Edge | Panel Mount Through Hole | Card Guides | 4-40 Flush Mount Threaded Insert Top Opening | ||
EDAC Inc. | Polyester Thermoplastic | 2 | Female | Gold | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Black | 0.156 in | 3.96 mm | 10 Áin | 0.25 Ám | -40 °C | 105 ░C | Solder Eyelet(s) | Dual | 34 | Copper Alloy | Cantilever | 1 | Non Specified - Dual Edge | Flush Mount Top Opening Unthreaded | 3.96 mm | 0.156 in | ||
EDAC Inc. | Polyester Thermoplastic | 2 | Female | Tin | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Black | 0.156 in | 3.96 mm | -40 °C | 105 ░C | Solder Eyelet(s) | Dual | 34 | Copper Alloy | Cantilever | 1 | Non Specified - Dual Edge | Flush Mount Top Opening Unthreaded | 3.25 mm | 0.128 " | ||||
EDAC Inc. | Polyester Thermoplastic | 2 | Female | Tin | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Black | 0.156 in | 3.96 mm | -40 °C | 105 ░C | Solder Eyelet(s) | Dual | 34 | Copper Alloy | Cantilever | 1 | Non Specified - Dual Edge | Floating Bobbin Flush Mount | 2.95 mm | 0.116 in | ||||
EDAC Inc. | Polyester Thermoplastic | 2 | Female | Gold | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Black | 0.156 in | 3.96 mm | 10 Áin | 0.25 Ám | -40 °C | 105 ░C | Solder | Dual | 34 | Copper Alloy | Cantilever | 1 | Non Specified - Dual Edge | Panel Mount Through Hole | Flush Mount Top Opening Unthreaded | 3.96 mm | 0.156 in | |
EDAC Inc. | Polyester Thermoplastic | 2 | Female | Tin | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Black | 0.156 in | 3.96 mm | -40 °C | 105 ░C | Solder | Dual | 34 | Copper Alloy | Cantilever | 1 | Non Specified - Dual Edge | Panel Mount Through Hole | Card Guides | 4-40 Flush Mount Threaded Insert Top Opening | ||||
EDAC Inc. | Polyester Thermoplastic | 2 | Female | Tin | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Black | 0.156 in | 3.96 mm | -40 °C | 105 ░C | Solder | Dual | 34 | Copper Alloy | Cantilever | 1 | Non Specified - Dual Edge | Panel Mount Through Hole | Flush Mount Top Opening Unthreaded | 3.96 mm | 0.156 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
356-017 Series
34 Position Female Connector Non Specified - Dual Edge Tin 0.156" (3.96mm) Black
