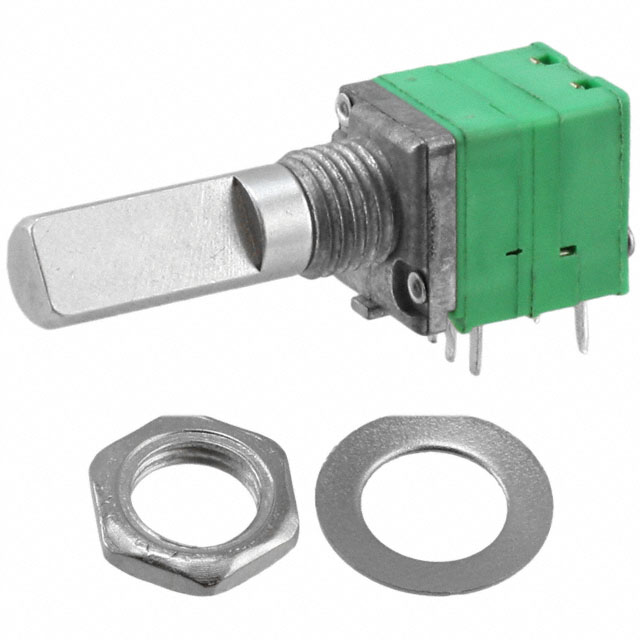

P091S-FC20BR10K
ActiveTT Electronics/BI
POT 10K OHM 1/20W PLASTIC LINEAR
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
P091S-FC20BR10K
ActiveTT Electronics/BI
POT 10K OHM 1/20W PLASTIC LINEAR
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | P091S-FC20BR10K |
|---|---|
| Actuator Diameter [diameter] | 0.236 in |
| Actuator Diameter [diameter] | 6 mm |
| Actuator Length [z] | 20 mm |
| Actuator Length [z] | 0.787 in |
| Actuator Type | Flatted |
| Adjustment Type | Side Adjustment |
| Built in Switch | Rotary, SPST |
| Bushing Thread | 0.75 |
| Bushing Thread | M7 |
| Number of Gangs | 1 |
| Number of Turns | 1 |
| Power (Watts) | 0.05 W |
| Power (Watts) | 50 mW |
| Resistance (Ohms) | 10k |
| Resistive Material | Conductive Plastic |
| Rotation | 300 ░ |
| Size - Body [x] | 0.447 in |
| Size - Body [x] | 11.35 mm |
| Size - Body [y] | 0.374 in |
| Size - Body [y] | 9.5 mm |
| Taper | Linear |
| Termination Style | Board Locks, PC Pins |
| Tolerance | 20 % |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 3.00 | |
| 10 | $ 2.64 | |||
| 25 | $ 2.36 | |||
| 40 | $ 2.27 | |||
| 80 | $ 2.18 | |||
| 230 | $ 2.09 | |||
| 440 | $ 1.73 | |||
| 1040 | $ 1.64 | |||
| 5200 | $ 1.36 | |||
Description
General part information
P091S Series
10k Ohm 1 Gang Linear Panel Mount Potentiometer 1.0 Turns Conductive Plastic 0.05W, 1/20W PC Pins, Board Locks
