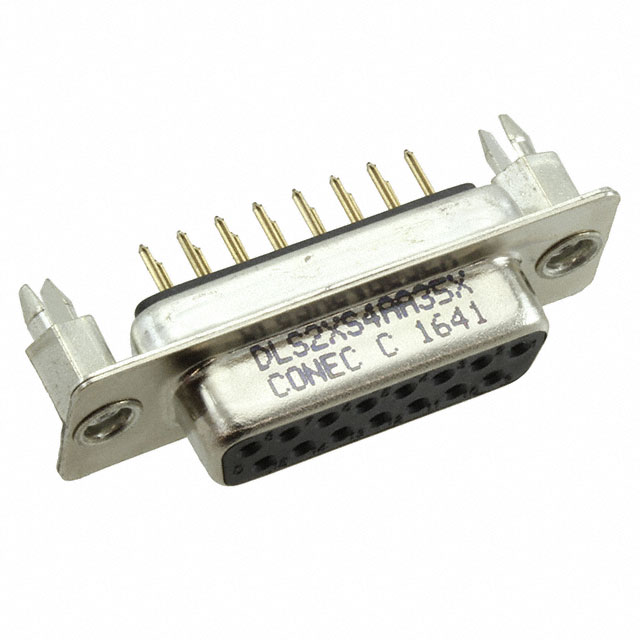

DLS2XS4AA35X

Active

Amphenol CONEC

CONN D-SUB RCPT 15POS VERT SLDR

Search across all available documentation for this part.

Active

Amphenol CONEC

CONN D-SUB RCPT 15POS VERT SLDR

Technical Specifications

Parameters and characteristics for this part

Specification	DLS2XS4AA35X

Color	Black
Connector Style	D-Sub
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Form	Stamped
Contact Material	Copper Alloy
Contact Type	Signal
Current Rating (Amps)	3 A
Dielectric Material	Thermoplastic
Flange Feature	Board Side, 4-40
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	15
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Shell Size, Connector Layout	2
Termination	Solder
Voltage Rating	250 VDC

Part	Voltage Rating	Connector Type	Contact Finish	Operating Temperature [Max]	Operating Temperature [Min]	Contact Material	Contact Type	Number of Positions	Material Flammability Rating	Dielectric Material	Flange Feature	Connector Style	Number of Rows	Contact Finish Thickness	Termination	Color	Current Rating (Amps)	Contact Form	Mounting Type	Shell Size, Connector Layout
Amphenol CONEC DLS2XS4AA39X	250 VDC	Receptacle Female Sockets	Gold	105 ░C	-55 °C	Copper Alloy	Signal	15	UL94 V-0	Thermoplastic	Board Side (4-40) Mating Side Female Screwlock (4-40)	D-Sub	2	Flash	Solder	Black	3 A	Stamped	Through Hole	2
Amphenol CONEC DLS2XS4AA35X	250 VDC	Receptacle Female Sockets	Gold	105 ░C	-55 °C	Copper Alloy	Signal	15	UL94 V-0	Thermoplastic	4-40 Board Side	D-Sub	2	Flash	Solder	Black	3 A	Stamped	Through Hole	2

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

15 Position D-Sub Receptacle, Female Sockets Connector
