WM071,GY

Active

Serpac

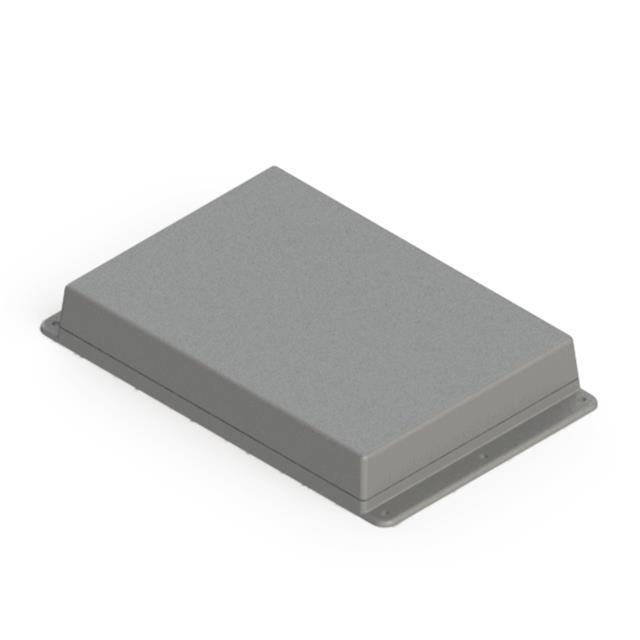

BOX ABS GRAY 6.88"L X 4.88"W

Deep-Dive with AI

Search across all available documentation for this part.

WM071,GY

Active

Serpac

BOX ABS GRAY 6.88"L X 4.88"W

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	WM071,GY

Area (L x W)	33.6 in²
Area (L x W)	217 cm²
Color	Gray
Container Type	Box
Design	Cover Included
Features	PCB Supports, Wall Mount, Mounting Flange
Height [z]	27.94 mm
Height [z]	1.1 in
Material	Plastic, ABS
Material Flammability Rating	UL94 HB
Ratings	IP40, NEMA 1
Size / Dimension [x]	174.75 mm
Size / Dimension [x]	6.88 in
Size / Dimension [y]	123.95 mm
Size / Dimension [y]	4.88 in
Thickness	2.54 mm
Thickness	0.1 in
Weight	0.347 lb
Weight	157.4 g

WM071 Series

Part	Height [z]	Height [z]	Design	Ratings	Area (L x W) [custom]	Area (L x W) [custom]	Material Flammability Rating	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Color	Container Type	Weight	Weight	Thickness	Thickness	Material	Features	Area (L x W)	Area (L x W)
Serpac WM071,AL	27.94 mm	1.1 in	Cover Included	IP40 NEMA 1	217 cm˛	33.6 in˛	UL94 HB	123.95 mm	174.75 mm	4.88 in	6.88 in	Almond	Box	0.347 lb	157.4 g	2.54 mm	0.1 in	Plastic ABS	Mounting Flange PCB Supports Wall Mount
Serpac WM071R,BK	27.94 mm	1.1 in	Cover Included	IP40 NEMA 1			UL94 HB	123.95 mm	174.75 mm	4.88 in	6.88 in	Black	Box	0.347 lb	157.4 g	2.54 mm	0.1 in	Plastic ABS	Front Access Mounting Flange PCB Supports Wall Mount	33.6 in²	217 cm²
Serpac WM071,BK	27.94 mm	1.1 in	Cover Included	IP40 NEMA 1			UL94 HB	123.95 mm	174.75 mm	4.88 in	6.88 in	Black	Box	0.347 lb	157.4 g	2.54 mm	0.1 in	Plastic ABS	Mounting Flange PCB Supports Wall Mount	33.6 in²	217 cm²
Serpac WM071I,BK	27.94 mm	1.1 in	Cover Included	IP40 NEMA 1	217 cm˛	33.6 in˛	UL94 HB	123.95 mm	174.75 mm	4.88 in	6.88 in	Black	Box	0.347 lb	157.4 g	2.54 mm	0.1 in	Plastic ABS	Mounting Flange PCB Supports Wall Mount
Serpac WM071I,AL	27.94 mm	1.1 in	Cover Included	IP40 NEMA 1			UL94 HB	123.95 mm	174.75 mm	4.88 in	6.88 in	Almond	Box	0.347 lb	157.4 g	2.54 mm	0.1 in	Plastic ABS	Mounting Flange PCB Supports Wall Mount	33.6 in²	217 cm²
Serpac WM071,GY	27.94 mm	1.1 in	Cover Included	IP40 NEMA 1			UL94 HB	123.95 mm	174.75 mm	4.88 in	6.88 in	Gray	Box	0.347 lb	157.4 g	2.54 mm	0.1 in	Plastic ABS	Mounting Flange PCB Supports Wall Mount	33.6 in²	217 cm²
Serpac WM071I,GY	27.94 mm	1.1 in	Cover Included	IP40 NEMA 1			UL94 HB	123.95 mm	174.75 mm	4.88 in	6.88 in	Gray	Box	0.347 lb	157.4 g	2.54 mm	0.1 in	Plastic ABS	Mounting Flange PCB Supports Wall Mount	33.6 in²	217 cm²
Serpac WM071R,AL	27.94 mm	1.1 in	Cover Included	IP40 NEMA 1			UL94 HB	123.95 mm	174.75 mm	4.88 in	6.88 in	Almond	Box	0.347 lb	157.4 g	2.54 mm	0.1 in	Plastic ABS	Front Access Mounting Flange PCB Supports Wall Mount	33.6 in²	217 cm²
Serpac WM071RI,AL	27.94 mm	1.1 in	Cover Included	IP40 NEMA 1			UL94 HB	123.95 mm	174.75 mm	4.88 in	6.88 in	Almond	Box	0.347 lb	157.4 g	2.54 mm	0.1 in	Plastic ABS	Front Access Mounting Flange PCB Supports Wall Mount	33.6 in²	217 cm²
Serpac WM071RI,GY	27.94 mm	1.1 in	Cover Included	IP40 NEMA 1			UL94 HB	123.95 mm	174.75 mm	4.88 in	6.88 in	Gray	Box	0.347 lb	157.4 g	2.54 mm	0.1 in	Plastic ABS	Front Access Mounting Flange PCB Supports Wall Mount	33.6 in²	217 cm²

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 16.35

Description

General part information

WM071 Series

Box Plastic, ABS Gray Cover Included 6.880" L x 4.880" W (174.75mm x 123.95mm) X 1.100" (27.94mm)

Documents

Technical documentation and resources

No documents available
