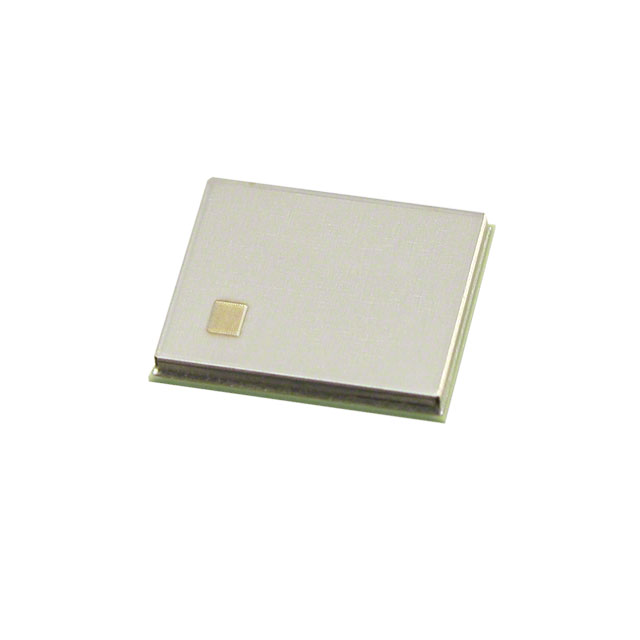

WLS1273L
ObsoleteMurata Power Solutions Inc.
RF TXRX MOD BLUETOOTH WIFI SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
WLS1273L
ObsoleteMurata Power Solutions Inc.
RF TXRX MOD BLUETOOTH WIFI SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | WLS1273L |
|---|---|
| Current - Receiving | 100 mA |
| Current - Transmitting | 265 mA |
| Data Rate | 3 Mbps |
| Frequency | 2.4 GHz |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | Module |
| Power - Output | 8 dBm |
| Protocol | 802.11a/b/g/n, Bluetooth v4.1 |
| RF Family/Standard | WiFi, Bluetooth |
| Sensitivity | -90 dBm |
| Serial Interfaces | UART |
| Utilized IC / Part | WL1273L |
| Voltage - Supply [Max] | 4.2 V |
| Voltage - Supply [Min] | 3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
WLS12 Series
Bluetooth, WiFi 802.11a/b/g/n, Bluetooth v4.1 Transceiver Module 2.4GHz Surface Mount
