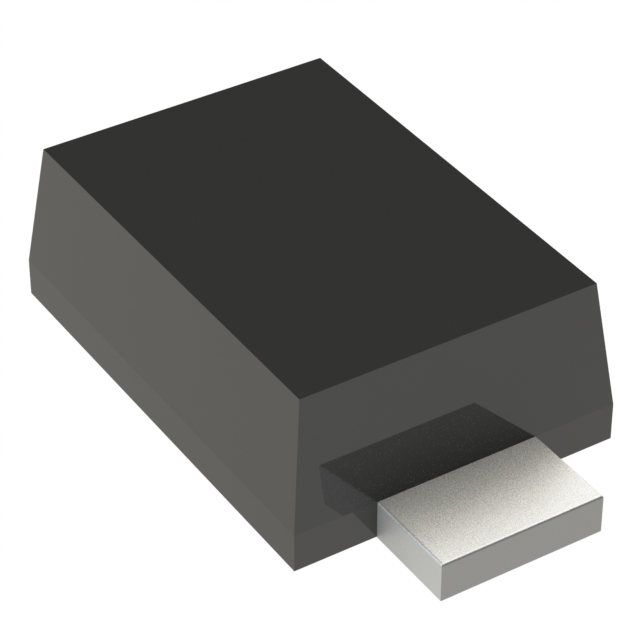

SS2060HEWS_R1_00001

Active

Panjit International Inc.

SCHOTTKY BARRIER RECTIFIERS

Search across all available documentation for this part.

Active

Panjit International Inc.

SCHOTTKY BARRIER RECTIFIERS

Technical Specifications

Parameters and characteristics for this part

Specification	SS2060HEWS_R1_00001

Capacitance @ Vr, F	50 pF
Current - Average Rectified (Io)	2 A
Current - Reverse Leakage @ Vr	30 µA
Mounting Type	Surface Mount
Operating Temperature - Junction [Max]	150 °C
Operating Temperature - Junction [Min]	-55 °C
Package / Case	SOD-323F, SC-90
Speed	200 mA, 500 ns
Supplier Device Package	SOD-323HE
Technology	Schottky
Voltage - DC Reverse (Vr) (Max) [Max]	60 V
Voltage - Forward (Vf) (Max) @ If	850 mV

Part	Current - Average Rectified (Io)	Capacitance @ Vr, F	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]	Mounting Type	Supplier Device Package	Voltage - DC Reverse (Vr) (Max) [Max]	Voltage - Forward (Vf) (Max) @ If	Technology	Current - Reverse Leakage @ Vr	Package / Case	Speed	Grade	Qualification
Panjit International Inc. SS2060LHE_R1_00001	2 A	230 pF	150 °C	-55 °C	Surface Mount	SOD-123HE	60 V	670 mV	Schottky	100 µA	SOD-123H	200 mA 500 ns
Panjit International Inc. SS2060FL-AU_R1_000A1	2 A	80 pF	150 °C	-55 °C	Surface Mount	SOD-123FL	60 V	700 mV	Schottky	40 µA	SOD-123F	200 mA 500 ns	Automotive	AEC-Q101
Panjit International Inc. SS2060FL_R1_00001	2 A		150 °C	-50 °C	Surface Mount	SOD-123FL	60 V	700 mV	Schottky	40 µA	SOD-123F	200 mA 500 ns
Panjit International Inc. SS2060HEWS_R1_00001	2 A	50 pF	150 °C	-55 °C	Surface Mount	SOD-323HE	60 V	850 mV	Schottky	30 µA	SC-90 SOD-323F	200 mA 500 ns
Panjit International Inc. SS2060LHE-AU_R1_000A1	2 A	80 pF	150 °C	-55 °C	Surface Mount	SOD-123HE	60 V	680 mV	Schottky	100 µA	SOD-123H	200 mA 500 ns	Automotive	AEC-Q101

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 0.35
	Digi-Reel®	1	$ 0.35
	Tape & Reel (TR)	250000	$ 0.04

General part information

Diode 60 V 2A Surface Mount SOD-323HE

Technical documentation and resources

No documents available
