AME30-5SMAZ

Obsolete

aimtec

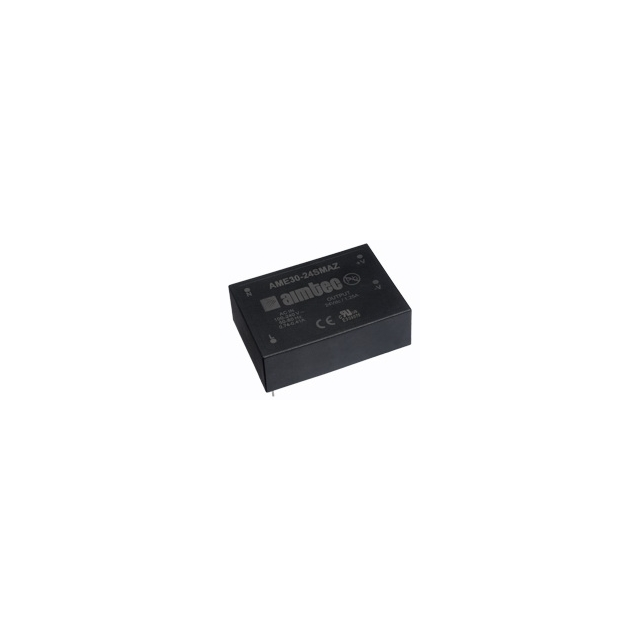

AC/DC CONVERTER 5V 30W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

AME30-5SMAZ

Obsolete

aimtec

AC/DC CONVERTER 5V 30W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	AME30-5SMAZ

Applications	ITE (Commercial), Medical
Approval Agency	CB, cURus, CE
Current - Output (Max) [Max]	6 A
Features	Universal Input
Line Regulation	1 %
Load Regulation	1 %
Mounting Type	Through Hole
Number of Outputs	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	4 Lead
Package / Case	5-DIP Module
Power (Watts)	30 W
Size / Dimension [x]	90.5 mm
Size / Dimension [x]	3.56 "
Size / Dimension [y]	63 mm
Size / Dimension [y]	2.48 in
Size / Dimension [z]	30 mm
Size / Dimension [z]	1.18 in
Type	Enclosed
Voltage - Input [Max]	264 VAC, 370 VDC
Voltage - Input [Min]	90 VAC, 130 VDC
Voltage - Output 1	5 V
Weight	300 g
Weight	0.661 lb

AME30 Series

Part	Power (Watts)	Type	Approval Agency	Number of Outputs	Mounting Type	Applications	Voltage - Input [Min]	Voltage - Input [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Output 1	Line Regulation	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Features	Package / Case	Package / Case	Load Regulation	Efficiency	Current - Output (Max) [Max]	Current - Output (Max)	Current - Output (Max)	Current - Output (Max) [Max]	Weight	Weight	Standard Number
aimtec AME30-12SMAZ	30 W	Enclosed	CB CE cURus	1	Through Hole	ITE (Commercial) Medical	90 VAC 130 VDC	264 VAC 370 VDC	85 °C	-40 °C	12 V	1 %	63 mm	2.48 in	30 mm	90.5 mm	1.18 in	3.56 "	Universal Input	4 Lead	5-DIP Module	1 %	84 %	2.5 A
aimtec AME30-24DMAZ	30 W	Enclosed	CB CE cURus	2	Through Hole	ITE (Commercial) Medical	90 VAC 130 VDC	264 VAC 370 VDC	85 °C	-40 °C	24 V	1 %	63 mm	2.48 in	30 mm	90.5 mm	1.18 in	3.56 "	Universal Input		5-DIP Module	1 %	77 %		625 mA	625 mA
aimtec AME30-5DMAZ	30 W	Enclosed	CB CE cURus	2	Through Hole	ITE (Commercial) Medical	90 VAC 130 VDC	264 VAC 370 VDC	85 °C	-40 °C	5 V	1 %	63 mm	2.48 in	30 mm	90.5 mm	1.18 in	3.56 "	Universal Input		5-DIP Module	2 %	80 %	3 A			3 A
aimtec AME30-15DMAZ	30 W	Enclosed	CB CE cURus	2	Through Hole	ITE (Commercial) Medical	90 VAC 130 VDC	264 VAC 370 VDC	85 °C	-40 °C	15 V	1 %	63 mm	2.48 in	30 mm	90.5 mm	1.18 in	3.56 "	Universal Input		5-DIP Module	1 %			1 A	1 A
aimtec AME30-5SMAZ	30 W	Enclosed	CB CE cURus	1	Through Hole	ITE (Commercial) Medical	90 VAC 130 VDC	264 VAC 370 VDC	85 °C	-40 °C	5 V	1 %	63 mm	2.48 in	30 mm	90.5 mm	1.18 in	3.56 "	Universal Input	4 Lead	5-DIP Module	1 %		6 A				300 g	0.661 lb
aimtec AME30-3.3SMAZ	20 W	Enclosed	CB CE cULus cURus UL	1	Through Hole	ITE (Commercial) Medical	90 VAC 130 VDC	264 VAC 370 VDC	85 °C	-40 °C	3.3 V	1 %	63 mm	2.48 in	30 mm	90.5 mm	1.18 in	3.56 "	Universal Input	4 Lead	5-DIP Module	1 %	79 %	6 A						60601-1
aimtec AME30-12DMAZ	30 W	Enclosed	CB CE cURus	2	Through Hole	ITE (Commercial) Medical	90 VAC 130 VDC	264 VAC 370 VDC	85 °C	-40 °C	12 V	1 %	63 mm	2.48 in	30 mm	90.5 mm	1.18 in	3.56 "	Universal Input		5-DIP Module	2 %			1.25 A
aimtec AME30-15SMAZ	30 W	Enclosed	CB CE cURus	1	Through Hole	ITE (Commercial) Medical	90 VAC 130 VDC	264 VAC 370 VDC	85 °C	-40 °C	15 V	1 %	63 mm	2.48 in	30 mm	90.5 mm	1.18 in	3.56 "	Universal Input	4 Lead	5-DIP Module	1 %	84 %	2 A

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 30.48
		5	$ 28.72

Description

General part information

AME30 Series

Enclosed AC DC Converters 1 Output 5V 6A 90 ~ 264 VAC, 130 ~ 370 VDC Input
