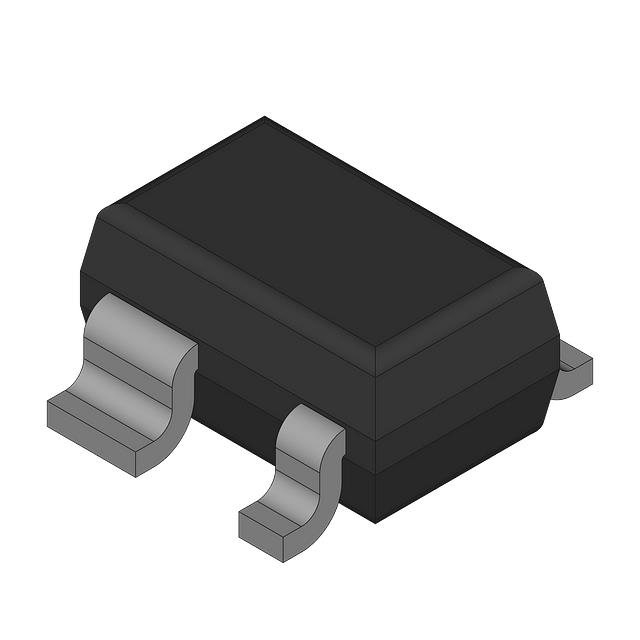

2SC5594XP-TL-H

Active

Renesas Electronics Corporation

SMALL SIGNAL BIP-TRSS FOR HIGH FREQUENCY AMPLIFIER

Search across all available documentation for this part.

Active

Renesas Electronics Corporation

SMALL SIGNAL BIP-TRSS FOR HIGH FREQUENCY AMPLIFIER

Technical Specifications

Parameters and characteristics for this part

Specification	2SC5594XP-TL-H

Current - Collector (Ic) (Max) [Max]	35 mA
DC Current Gain (hFE) (Min) @ Ic, Vce [Min]	60
Frequency - Transition	24 GHz
Gain	18 dBi
Mounting Type	Surface Mount
Noise Figure (dB Typ @ f)	1.2 dB
Operating Temperature	150 °C
Package / Case	SC-82A, SOT-343
Power - Max [Max]	100 mW
Supplier Device Package	CMPAK-4
Transistor Type	NPN
Voltage - Collector Emitter Breakdown (Max)	4.5 V

Small Signal Bip-TRSs for High Frequency Amplifier

Part	Frequency - Transition	Gain	Mounting Type	Operating Temperature	Transistor Type	Voltage - Collector Emitter Breakdown (Max)	Noise Figure (dB Typ @ f)	Power - Max [Max]	Supplier Device Package	Package / Case	Current - Collector (Ic) (Max) [Max]	DC Current Gain (hFE) (Min) @ Ic, Vce [Min]
Renesas Electronics Corporation 2SC5594XP-TL-E	24 GHz	18 dBi	Surface Mount	150 °C	NPN	4.5 V	1.2 dB	100 mW	CMPAK-4	SC-82A SOT-343	35 mA	60
Renesas Electronics Corporation 2SC5594XP-TL-H	24 GHz	18 dBi	Surface Mount	150 °C	NPN	4.5 V	1.2 dB	100 mW	CMPAK-4	SC-82A SOT-343	35 mA	60
