R404012120

Active

Radiall USA, Inc.

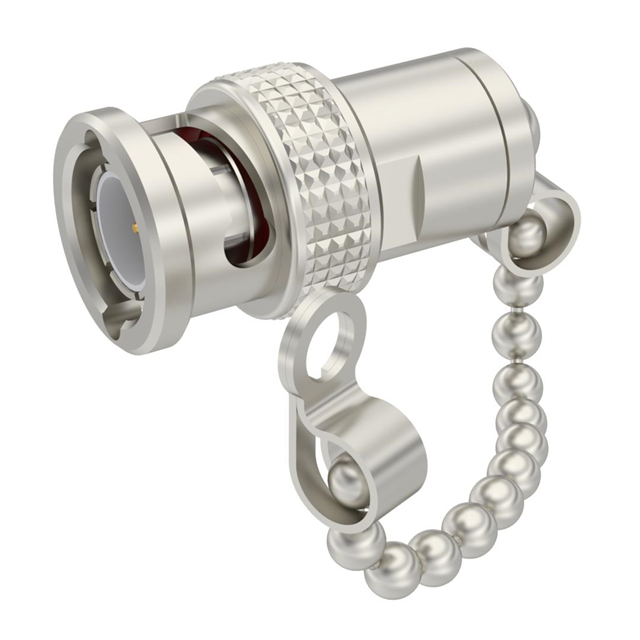

TERMINATION: BNC M 1GHZ 1W 75OHM

Search across all available documentation for this part.

Active

Radiall USA, Inc.

TERMINATION: BNC M 1GHZ 1W 75OHM

Technical Specifications

Parameters and characteristics for this part

Specification	R404012120

Body Finish	Nickel
Body Material	Brass
Connector Style	BNC
Connector Type	Male Pin, Plug
Contact Finish	Gold
Contact Material	Brass
Dielectric Material	Polytetrafluoroethylene (PTFE)
Features	Chain
Frequency - Max [Max]	1 GHz
Impedance	75 Ohms
Mounting Type	Free Hanging, Cap

Part	Impedance	Contact Finish	Body Material	Body Finish	Connector Type	Contact Material	Connector Style	Mounting Type	Dielectric Material	Frequency - Max [Max]	Features
Radiall USA, Inc. R404012000	75 Ohms	Gold	Brass	Nickel	Male Pin Plug	Beryllium Copper	BNC	Cap Free Hanging	Polytetrafluoroethylene (PTFE)	1 GHz
Radiall USA, Inc. R404012120	75 Ohms	Gold	Brass	Nickel	Male Pin Plug	Brass	BNC	Cap Free Hanging	Polytetrafluoroethylene (PTFE)	1 GHz	Chain
Radiall USA, Inc. R404014000	75 Ohms				Female Socket Jack		BNC	Cap Free Hanging		1 GHz

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 45.85

General part information

Terminator Coax Connector Plug, Male Pin BNC 75 Ohms
