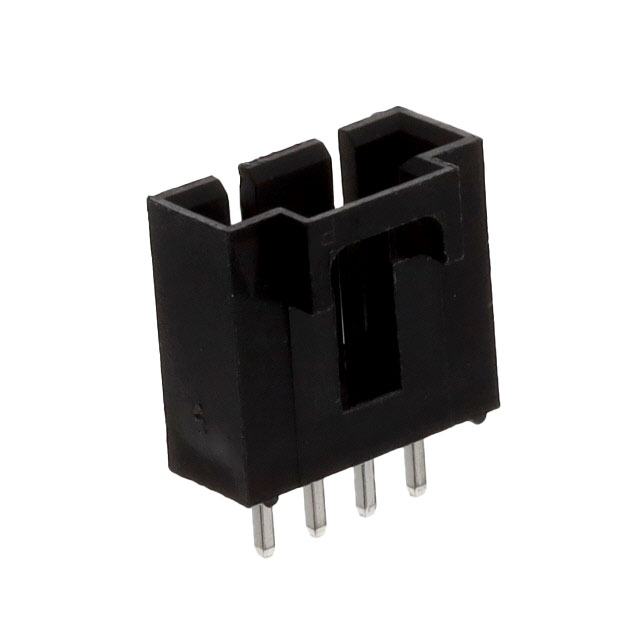

CDR-04-TS

Active

Adam Tech

FRICTION LOCK HEADER 4P 2.54MM P

Search across all available documentation for this part.

Active

Adam Tech

FRICTION LOCK HEADER 4P 2.54MM P

Technical Specifications

Parameters and characteristics for this part

Specification	CDR-04-TS

Connector Type	Header
Contact Finish - Post	Tin
Contact Length - Post	3.35 mm
Contact Length - Post	0.132 in
Contact Material	Copper Alloy
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Latch Holder
Features	Polarizing Key
Insulation Color	Black
Insulation Height	11.5 mm
Insulation Height	0.453 in
Insulation Material	Polybutylene Terephthalate (PBT), Glass Filled
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	4
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Shrouding	Unshrouded
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	250 VAC

Part	Style	Connector Type	Number of Rows	Insulation Height	Insulation Height	Number of Positions	Mounting Type	Current Rating (Amps)	Contact Material	Contact Length - Post	Contact Length - Post	Shrouding	Contact Shape	Insulation Material	Material Flammability Rating	Operating Temperature [Min]	Operating Temperature [Max]	Contact Type	Fastening Type	Contact Finish - Post	Features	Insulation Color	Voltage Rating	Termination	Number of Positions Loaded	Pitch - Mating	Pitch - Mating
Adam Tech CDR-04-TS	Board to Cable/Wire	Header	1	11.5 mm	0.453 in	4	Through Hole	3 A	Copper Alloy	3.35 mm	0.132 in	Unshrouded	Square	Polybutylene Terephthalate (PBT) Glass Filled	UL94 V-0	-40 °C	105 ░C	Male Pin	Latch Holder	Tin	Polarizing Key	Black	250 VAC	Solder	All	0.1 in	2.54 mm
