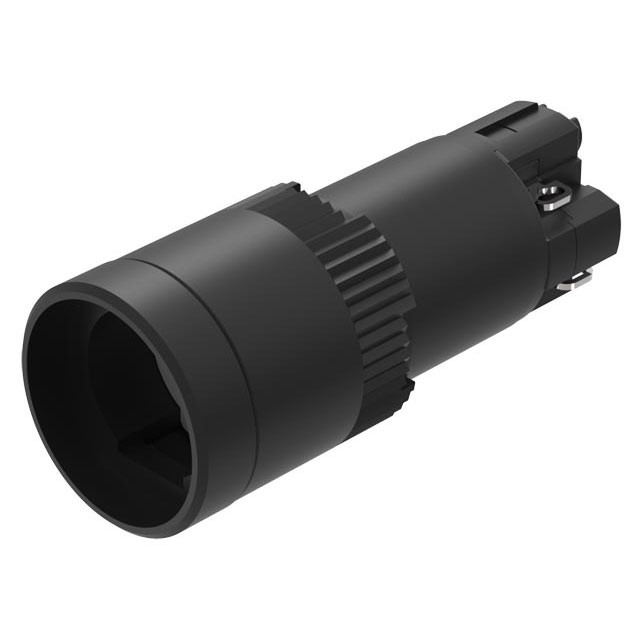

01-131.025

Active

EAO

SWITCH PB DPST-NO/NC 5A 250V

Search across all available documentation for this part.

Active

EAO

SWITCH PB DPST-NO/NC 5A 250V

Technical Specifications

Parameters and characteristics for this part

Specification	01-131.025

Actuator Marking	No Marking
Actuator Type	Round, Button (Not Included)
Circuit	DPST-NO/NC
Current Rating (Amps)	5 A
Ingress Protection	IP40
Mechanical Life	2000000 Cycles
Mounting Type	Panel Mount, Front
Operating Temperature [Max]	55 °C
Operating Temperature [Min]	-25 °C
Panel Cutout Dimensions [diameter]	16 mm
Switch Function	Off-Mom, On-Mom
Termination Style	Solder Lug
Type	Standard
Voltage Rating - AC	250 V

Part	Actuator Marking	Operating Temperature [Max]	Operating Temperature [Min]	Voltage Rating - AC	Type	Panel Cutout Dimensions [diameter]	Mounting Type	Actuator Type	Switch Function	Termination Style	Mechanical Life	Current Rating (Amps)	Circuit	Ingress Protection
EAO 01-131.025	No Marking	55 °C	-25 °C	250 V	Standard	16 mm	Panel Mount Front	Round Button (Not Included)	Off-Mom On-Mom	Solder Lug	2000000 Cycles	5 A	DPST-NO/NC	IP40

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Pushbutton Switch DPST-NO/NC Standard Panel Mount, Front
