ELFP06410

Active

AMPHENOL PCD

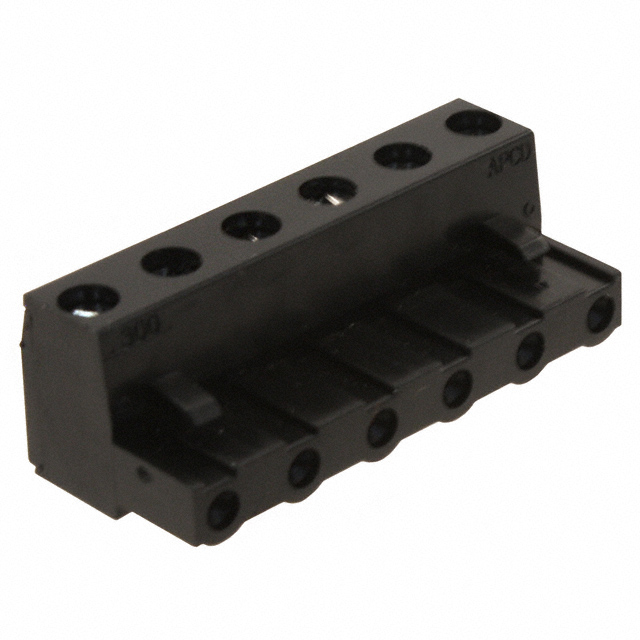

TERM BLOCK PLUG 6POS STR 7.62MM

Search across all available documentation for this part.

Active

AMPHENOL PCD

TERM BLOCK PLUG 6POS STR 7.62MM

Technical Specifications

Parameters and characteristics for this part

Specification	ELFP06410

Color	Black
Contact Material	Copper Alloy
Contact Mating Finish	Tin
Housing Material	Polyphenylene Oxide (PPO)
Insulation Height	15.04 mm
Insulation Height	0.592 in
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Levels	1
Number of Positions	6
Operating Temperature	105 C
Pitch [x]	0.3 in
Pitch [x]	7.62 mm
Positions Per Level	6
Termination Style	Screw - Rising Cage Clamp
Torque - Screw	0.79 Nm
Torque - Screw	7 Lb-In
Type	Plug, Female Sockets
Voltage - UL	300 V
Wire Gauge or Range - AWG	12 AWG
Wire Gauge or Range - AWG [Max]	26 AWG
Wire Gauge or Range - AWG [Min]	14 AWG

Part	Type	Pitch [x]	Pitch [x]	Contact Material	Operating Temperature	Voltage - UL	Termination Style	Color	Number of Positions	Housing Material	Torque - Screw	Torque - Screw	Contact Mating Finish	Number of Levels	Material Flammability Rating	Wire Gauge or Range - AWG [Max]	Wire Gauge or Range - AWG	Wire Gauge or Range - AWG [Min]	Positions Per Level	Insulation Height	Insulation Height	Mounting Type
AMPHENOL PCD ELFP06410	Plug Female Sockets	0.3 in	7.62 mm	Copper Alloy	105 C	300 V	Screw - Rising Cage Clamp	Black	6	Polyphenylene Oxide (PPO)	0.79 Nm	7 Lb-In	Tin	1	UL94 V-0	26 AWG	12 AWG	14 AWG	6	15.04 mm	0.592 in	Free Hanging (In-Line)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 3.64

General part information

6 Position Terminal Block Plug, Female Sockets 0.300" (7.62mm) 180° Free Hanging (In-Line)
