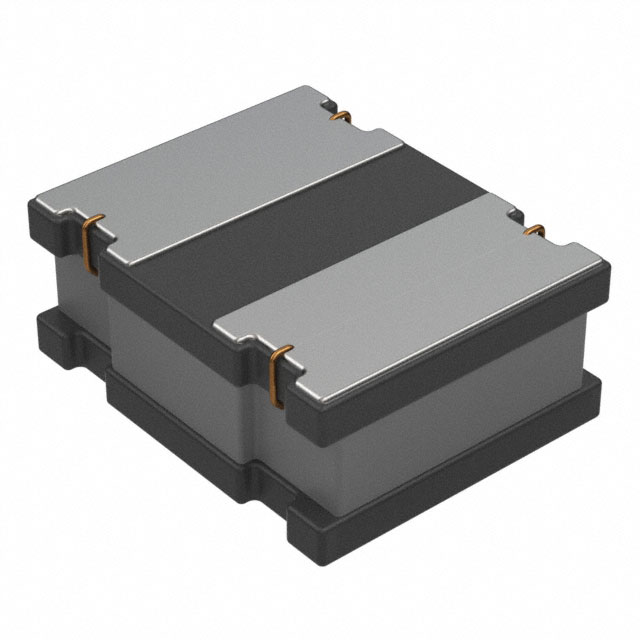

SDET25201T-1R0MS
ActiveDelta Electronics/Cyntec
FIXED IND 1UH 1.98A 81 MOHM SMD
Deep-Dive with AI
Search across all available documentation for this part.
SDET25201T-1R0MS
ActiveDelta Electronics/Cyntec
FIXED IND 1UH 1.98A 81 MOHM SMD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SDET25201T-1R0MS |
|---|---|
| Current - Saturation (Isat) | 1.89 A |
| Current Rating (Amps) | 1.98 A |
| DC Resistance (DCR) [Max] | 81 mOhm |
| Height - Seated (Max) [Max] | 0.039 " |
| Height - Seated (Max) [Max] | 1 mm |
| Inductance | 1 µH |
| Inductance Frequency - Test | 1 MHz |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | 1008 |
| Shielding | Shielded |
| Size / Dimension [x] | 0.098 " |
| Size / Dimension [x] | 2.5 mm |
| Size / Dimension [y] | 2 mm |
| Size / Dimension [y] | 0.079 in |
| Supplier Device Package | 1008 |
| Tolerance | 20 % |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.24 | |
| 10 | $ 0.20 | |||
| 25 | $ 0.18 | |||
| 50 | $ 0.17 | |||
| 100 | $ 0.15 | |||
| 250 | $ 0.14 | |||
| 500 | $ 0.13 | |||
| 1000 | $ 0.10 | |||
| Digi-Reel® | 1 | $ 0.24 | ||
| 10 | $ 0.20 | |||
| 25 | $ 0.18 | |||
| 50 | $ 0.17 | |||
| 100 | $ 0.15 | |||
| 250 | $ 0.14 | |||
| 500 | $ 0.13 | |||
| 1000 | $ 0.10 | |||
| Tape & Reel (TR) | 3000 | $ 0.06 | ||
Description
General part information
SDET25201T Series
1 µH Shielded Inductor 1.98 A 81mOhm Max 1008 (2520 Metric)
Documents
Technical documentation and resources
No documents available
