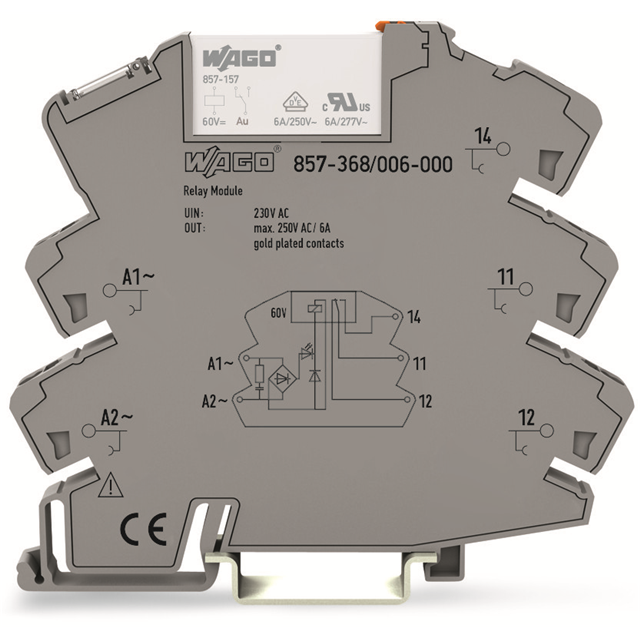

857-368/006-000
ActiveWAGO Corporation
RELAY GEN PURPOSE SPDT 6A 230V
Deep-Dive with AI
Search across all available documentation for this part.
857-368/006-000
ActiveWAGO Corporation
RELAY GEN PURPOSE SPDT 6A 230V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 857-368/006-000 |
|---|---|
| Approval Agency | EAC |
| Coil Current | 16 mA |
| Coil Resistance | 14.38 kOhms |
| Coil Type | Non Latching |
| Coil Voltage | 230 VAC |
| Contact Form | SPDT (1 Form C) |
| Contact Material | Silver Nickel (AgNi), Gold (Au) |
| Contact Rating (Current) | 6 A |
| Features | Lighted Indicator |
| Load - Max Switching | 1500 VA |
| Mounting Type | DIN Rail |
| Operate Time | 15 ms |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | -40 °C |
| Relay Type | General Purpose |
| Release Time | 25 ms |
| Switching Voltage | 250 VAC |
| Termination Style | Spring Terminal |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
857-368 Series
General Purpose Relay SPDT (1 Form C) 230VAC Coil DIN Rail
