B33D-500-2-345BK

Active

BRADY

B33, B345 DS, BLACK, 0.851 X 2"

Search across all available documentation for this part.

Active

BRADY

B33, B345 DS, BLACK, 0.851 X 2"

Technical Specifications

Parameters and characteristics for this part

Specification	B33D-500-2-345BK

Color	Black
Label Size [diameter]	12.7 mm
Label Size [Max]	11.4 mm, 0.45 "
Label Size [Min]	6.4 mm, 0.25 "
Label Size [x]	50.8 mm
Label Type	Heat Shrinkable
Material	Polyvinylidene Fluoride (PVDF)
Operating Temperature [Max]	225 °C
Operating Temperature [Min]	-55 °C

Part	Operating Temperature [Min]	Operating Temperature [Max]	Label Type	Material	Label Size [Min]	Label Size [x]	Label Size [diameter]	Label Size [Max]	Color	Label Size [diameter]	Label Size [x]
BRADY B33D-500-2-345	-55 °C	225 °C	Heat Shrinkable	Polyvinylidene Fluoride (PVDF)	0.25 " 6.4 mm	50.8 mm	12.7 mm	0.45 " 11.4 mm	White
BRADY B33D-500-2-345BK	-55 °C	225 °C	Heat Shrinkable	Polyvinylidene Fluoride (PVDF)	0.25 " 6.4 mm	50.8 mm	12.7 mm	0.45 " 11.4 mm	Black
BRADY B33D-500-2-342BK	-55 °C	135 °C	Heat Shrinkable	Polyolefin (PO)		50.8 mm	0.19 in 0.45 in 4.8 mm 11.4 mm 12.7 mm		Black	0.5 "	2 "
BRADY B33D-500-2-7642	-40 °C	120 °C	Heat Shrinkable	Polyolefin (PO)	0.25 " 6.4 mm	50.8 mm	12.7 mm	0.45 " 11.4 mm	White
BRADY B33D-500-2-7641Y			Heat Shrinkable	Polyolefin (PO)	0.25 " 6.4 mm	50.8 mm	12.7 mm	0.45 " 11.4 mm	Yellow

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1857.42

General part information

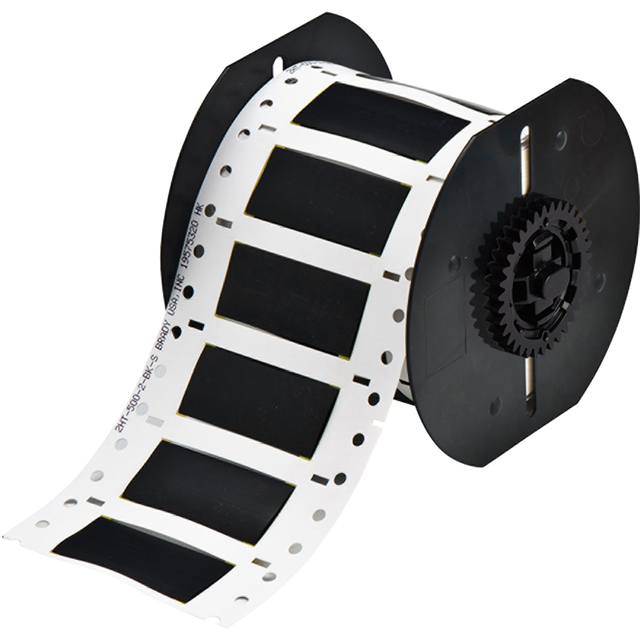

Black Heat Shrinkable Label 2.00" W x 0.50" Dia (50.8mm x 12.7mm); Cable O.D. 0.25" ~ 0.45" (6.4mm ~ 11.4mm)
