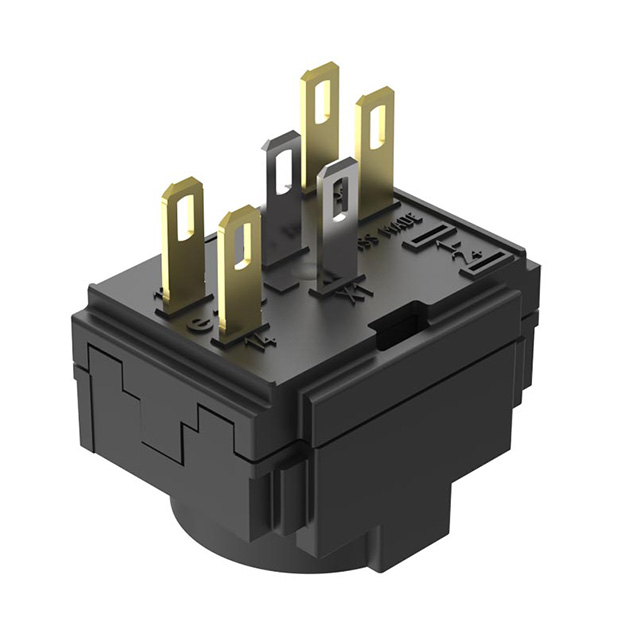

61-8470.22

Active

EAO

CONTACT BLOCK, 5 A, 250 V, SNAP-ACTION, 2 POLE, 61 SERIES, QUICK CONNECT, SOLDER, SPDT-1NO/1NC

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

61-8470.22

Active

EAO

CONTACT BLOCK, 5 A, 250 V, SNAP-ACTION, 2 POLE, 61 SERIES, QUICK CONNECT, SOLDER, SPDT-1NO/1NC

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	61-8470.22

(Select First, Then Apply Filters) Compatible Series	EAO, 61
Circuit	DPST-NO/NC
Contact Rating @ Voltage	250 VAC, 5 A
Requires	Switch Body
Termination Style	0.11 in
Termination Style	Quick Connect, Solder
Termination Style	2.8 mm

61-8470 Series

Part	Termination Style	Termination Style	Termination Style	Contact Rating @ Voltage	Requires	(Select First, Then Apply Filters) Compatible Series	Circuit
EAO 61-8470.22	0.11 in	Quick Connect Solder	2.8 mm	5 A 250 VAC	Switch Body	61 EAO	DPST-NO/NC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 20.55
		10	$ 17.73
		25	$ 16.72
		50	$ 15.99
		100	$ 15.29
		250	$ 14.41
		500	$ 13.78
Newark	Each	1	$ 20.57
		5	$ 18.92
		10	$ 17.48
		25	$ 15.84
		50	$ 14.60

Description

General part information

61-8470 Series

The 61-8470.22 is a 2-position Switching Element with gold 1NC + 1NO contacts, solder termination and snap-action function. The switching element is designed for use with 61 series pushbutton, keylock and selector switches.
