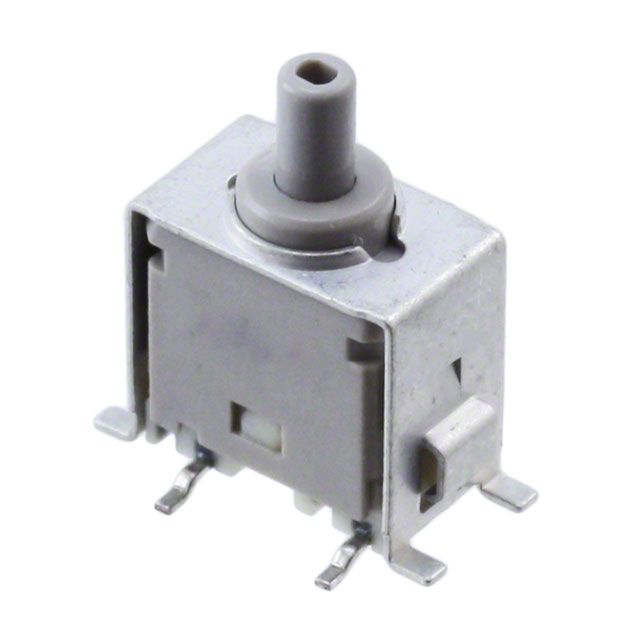

G3B15AP-S

Active

NKK Switches

ULTRA-MINIATURE PROCESS SEALED SMT PUSHBUTTON

Search across all available documentation for this part.

Active

NKK Switches

ULTRA-MINIATURE PROCESS SEALED SMT PUSHBUTTON

Technical Specifications

Parameters and characteristics for this part

Part	Current Rating (Amps)	Actuator Marking	Termination Style	Actuator Type	Switch Function	Features	Operating Temperature [Min]	Operating Temperature [Max]	Electrical Life	Voltage Rating - DC	Voltage Rating - AC	Type	Circuit	Mounting Type	Color - Actuator/Cap
NKK Switches G3B15AP-S	0.4 VA	No Marking	Gull Wing	Round Plunger	On-Mom	Process Sealed	-30 ░C	85 °C	50000 Cycles	28 V	28 V	Standard	SPDT	Surface Mount
NKK Switches G3B15AP-S-YA	0.4 VA	No Marking	Gull Wing	Button Round	On-Mom	Process Sealed	-30 ░C	85 °C	50000 Cycles	28 V	28 V	Standard	SPDT	Surface Mount	Black

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Pushbutton Switch SPDT Standard Surface Mount
