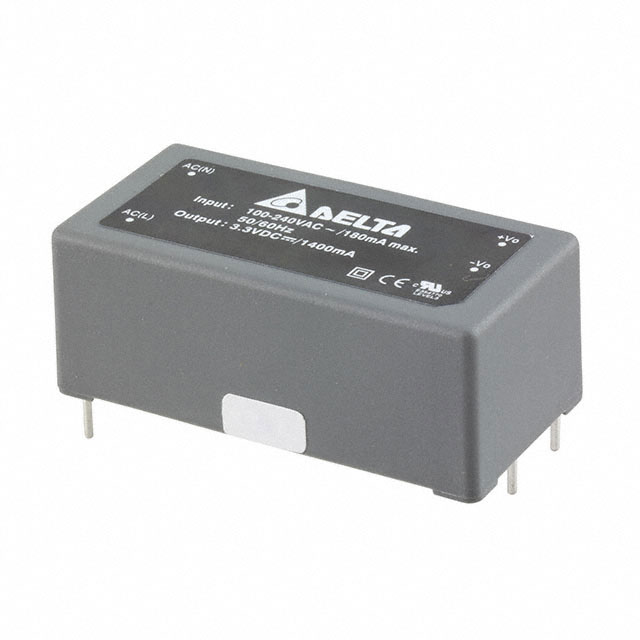

AA07S0300A

Obsolete

Delta Electronics

AC/DC CONVERTER 3.3V 7W

Search across all available documentation for this part.

Obsolete

Delta Electronics

AC/DC CONVERTER 3.3V 7W

Technical Specifications

Parameters and characteristics for this part

Part	Features	Efficiency	Power (Watts)	Operating Temperature [Min]	Operating Temperature [Max]	Approval Agency	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Package / Case	Applications	Weight	Weight	Standard Number	Load Regulation	Type	Number of Outputs	Line Regulation	Mounting Type	Current - Output (Max) [Max]	Voltage - Output 1
Delta Electronics AA07S1500A	Universal Input	78 %	7 W	-25 °C	70 °C	CE UL	25.4 mm	19.5 mm	25.4 mm	0.77 "	50.8 mm	2 in	4-DIP Module	ITE (Commercial)	44 g	0.097 lb	60950-1	0.5 %	Enclosed	1	0.5 %	Through Hole	466 mA	15 V
Delta Electronics AA07S0300A	Universal Input	70 %	7 W	-25 °C	70 °C	CE UL	25.4 mm	19.5 mm	25.4 mm	0.77 "	50.8 mm	2 in	4-DIP Module	ITE (Commercial)	44 g	0.097 lb	60950-1	0.5 %	Enclosed	1	0.5 %	Through Hole	1.4 A	3.3 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Enclosed AC DC Converters 1 Output 3.3V 1.4A 85 ~ 264 VAC Input
