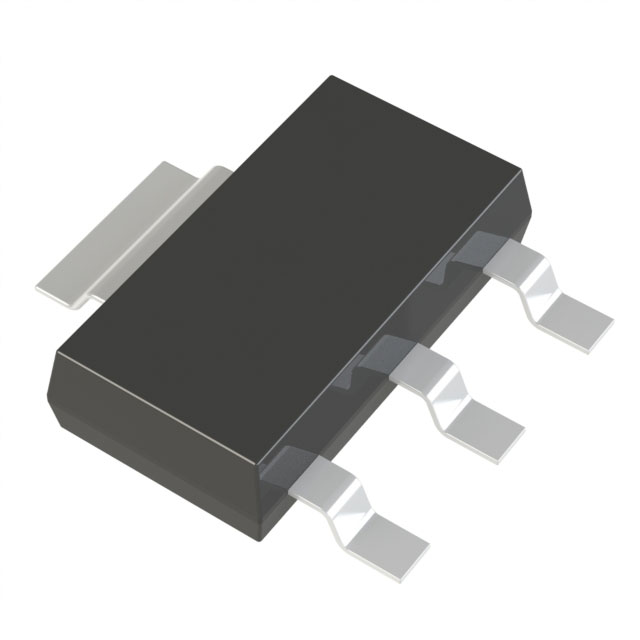

ZXTP01500BGTC

Active

Diodes Inc

TRANS PNP 500V 0.15A SOT223-3

Search across all available documentation for this part.

Active

Diodes Inc

TRANS PNP 500V 0.15A SOT223-3

Technical Specifications

Parameters and characteristics for this part

Specification	ZXTP01500BGTC

Current - Collector (Ic) (Max) [Max]	150 mA
Current - Collector Cutoff (Max) [Max]	100 nA
DC Current Gain (hFE) (Min) @ Ic, Vce [Min]	100
Frequency - Transition	60 MHz
Grade	Automotive
Mounting Type	Surface Mount
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-55 °C
Package / Case	TO-261AA, TO-261-4
Power - Max [Max]	3 W
Qualification	AEC-Q101
Supplier Device Package	SOT-223-3
Transistor Type	PNP
Vce Saturation (Max) @ Ib, Ic	500 mV
Voltage - Collector Emitter Breakdown (Max) [Max]	500 V

PNP, 500V, 0.15A, SOT223

Part	Supplier Device Package	DC Current Gain (hFE) (Min) @ Ic, Vce [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Frequency - Transition	Qualification	Power - Max [Max]	Voltage - Collector Emitter Breakdown (Max) [Max]	Package / Case	Mounting Type	Transistor Type	Grade	Current - Collector (Ic) (Max) [Max]	Vce Saturation (Max) @ Ib, Ic	Current - Collector Cutoff (Max) [Max]
Diodes Inc ZXTP01500BGTC	SOT-223-3	100	-55 °C	150 °C	60 MHz	AEC-Q101	3 W	500 V	TO-261-4 TO-261AA	Surface Mount	PNP	Automotive	150 mA	500 mV	100 nA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

PNP, 500V, 0.15A, SOT223
