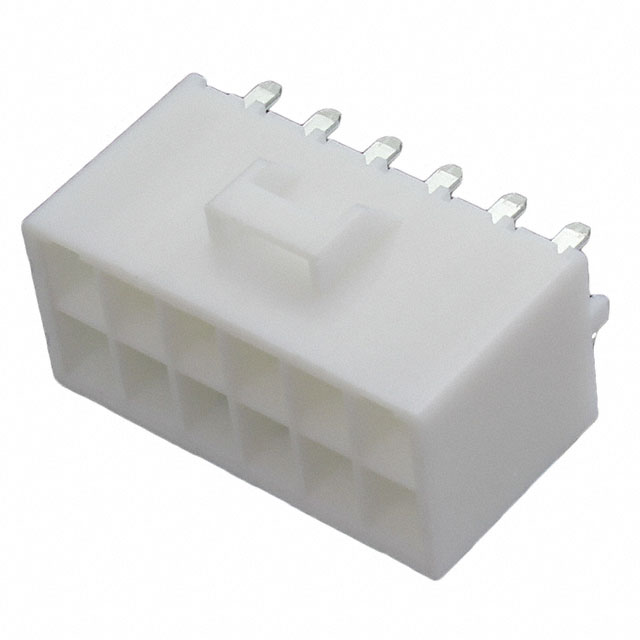

B12P-HL-A

Active

JST Sales America Inc.

CONN HEADER VERT 12POS 3.96MM

Search across all available documentation for this part.

Active

JST Sales America Inc.

CONN HEADER VERT 12POS 3.96MM

Technical Specifications

Parameters and characteristics for this part

Specification	B12P-HL-A

Connector Type	Header
Contact Finish - Post	Tin
Contact Material	Brass
Contact Shape	Rectangular
Contact Type	Male Pin
Current Rating (Amps)	7 A
Fastening Type	Latch Holder
Features	Board Guide
Insulation Color	Natural
Insulation Material	Polyamide (PA66), Nylon 6/6
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	12
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	90 °C
Operating Temperature [Min]	-25 °C
Pitch - Mating	0.156 in
Pitch - Mating	3.96 mm
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	300 VDC

Part	Mounting Type	Insulation Material	Termination	Contact Finish - Post	Connector Type	Material Flammability Rating	Number of Rows	Contact Material	Contact Length - Post [x]	Contact Length - Post [x]	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Amps)	Contact Type	Shrouding	Number of Positions	Voltage Rating	Insulation Height	Insulation Height	Overall Contact Length	Overall Contact Length	Contact Shape	Insulation Color	Contact Length - Mating	Contact Length - Mating	Pitch - Mating	Pitch - Mating	Number of Positions Loaded	Fastening Type	Mated Stacking Heights	Style	Features
JST Sales America Inc. B12P-SHF-1AA	Through Hole	Polyamide (PA66) Nylon 6/6	Solder	Tin	Header	UL94 V-0	1	Brass	0.134 in	3.4 mm	-25 °C	85 °C	3 A	Male Pin	Unshrouded	12	250 VDC	3.2 mm	0.126 in	0.496 in	12.6 mm	Square	Natural	6 mm	0.236 in	2.5 mm	0.098 in	All	Friction Lock	14.9 mm	Board to Cable/Wire
JST Sales America Inc. B12P-HL-A	Through Hole	Polyamide (PA66) Nylon 6/6	Solder	Tin	Header	UL94 V-0	2	Brass			-25 °C	90 °C	7 A	Male Pin	Shrouded - 4 Wall	12	300 VDC					Rectangular	Natural			3.96 mm	0.156 in	All	Latch Holder		Board to Cable/Wire	Board Guide

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Connector Header Through Hole 12 position 0.156" (3.96mm)
