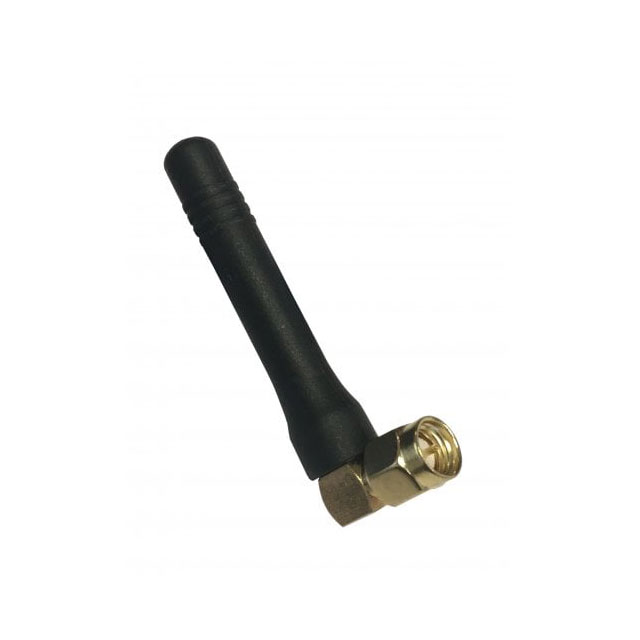

ANT-3GHEL2R-SMA
ActiveRF SOLUTIONS
WIRELESS ANTENNA
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | ANT-3GHEL2R-SMA |
|---|---|
| Antenna Type | Helical |
| Applications | GSM |
| Frequency (Center/Band) | 1.8 GHz, 900 MHz, 850 MHz, 1.9 GHz, 2.1 GHz |
| Frequency Group | Wide Band |
| Gain | 1.5 dBic |
| Height (Max) [Max] | 2.087 in |
| Height (Max) [Max] | 53 mm |
| Mounting Type | Connector Mount |
| Number of Bands [custom] | 5 |
| RF Family/Standard | Cellular |
| VSWR | 3.5 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 18 | $ 5.11 | |
Description
General part information
ANT-3GHEL2R Series
RF ANTENNA GSM Helical SMA Male Connector Mount
Documents
Technical documentation and resources
No documents available
