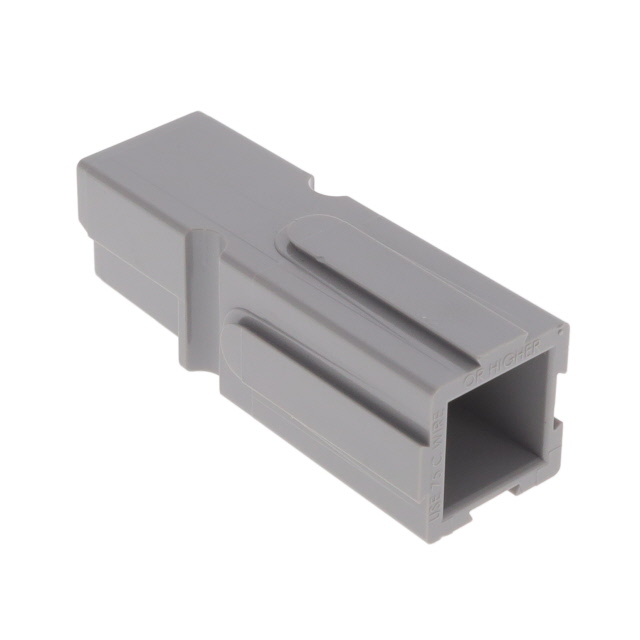

5916G16

Active

Anderson Power Products, Inc.

CONNECTOR: DC SUPPLY; PLUG; HERMAPHRODITE; POWERPOLE® PP75; GREY

Search across all available documentation for this part.

Active

Anderson Power Products, Inc.

CONNECTOR: DC SUPPLY; PLUG; HERMAPHRODITE; POWERPOLE® PP75; GREY

Technical Specifications

Parameters and characteristics for this part

Heavy Duty Power Connectors LOCKING PP75 HOUSING ONLY, GREEN

Part	Contact Type	Connector Type	Number of Rows	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating	Contact Termination	Stacking Direction	Note	Fastening Type	Color	Mounting Type	Current Rating (Amps)	Number of Positions	Features	Material - Insulation	Material - Insulation
Anderson Power Products, Inc. P5916G5-BK	Non-Gendered	Non-Gendered	1	-40 °C	105 ░C	600 V	Crimp	Side to Side	Contacts Not Included	Spring Retention	White	Free Hanging (In-Line)	120 A	2
Anderson Power Products, Inc. 5916G16	Non-Gendered	Non-Gendered	1	-20 C	105 ░C	600 V	Crimp		Contacts Not Included	Spring Retention	Gray	Free Hanging (In-Line)	120 A	1	Stackable	Polycarbonate	PC
Anderson Power Products, Inc. 75LOKGRN	Non-Gendered	Non-Gendered	1	-20 C	105 ░C	600 V	Crimp		Contacts Not Included	Spring Retention	Green	Free Hanging (In-Line)	120 A	1	Stackable	Polycarbonate	PC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Heavy Duty Power Connectors LOCKING PP75 HOUSING ONLY, GREEN
