HW1S-2TF10

Active

IDEC

ROTARY SWITCH, 2 POSITION, 1 POLE, 90 °, 10 A, 600 V, HW SERIES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

HW1S-2TF10

Active

IDEC

ROTARY SWITCH, 2 POSITION, 1 POLE, 90 °, 10 A, 600 V, HW SERIES

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	HW1S-2TF10

Approval Agency	TUV, CSA, CCC, CE, UL
Circuit	SPST-NO
Current Rating (Amps)	8 A, 10 A
Depth Behind Flange [z]	48.5 mm
Illumination	Non-Illuminated
Ingress Protection	IP65 - Dust Tight, Water Resistant
Mechanical Life	500000 Cycles
Number of Positions	2
Operating Temperature [Max]	50 °C
Operating Temperature [Min]	-25 °C
Panel Cutout Dimensions [diameter]	22.3 mm
Switch Function	Off-On
Termination Style	Screw Terminal
Type	Standard
Voltage Rating - AC	110 V
Voltage Rating - DC	24 V

HW1S-2T Series

Part	Termination Style	Panel Cutout Dimensions [diameter]	Current Rating (Amps)	Number of Positions	Type	Voltage Rating - AC	Mechanical Life	Depth Behind Flange [z]	Approval Agency	Operating Temperature [Max]	Operating Temperature [Min]	Circuit	Ingress Protection	Switch Function	Voltage Rating - DC	Illumination
IDEC HW1S-2TF20	Screw Terminal	22.3 mm	8 A 10 A	2	Standard	110 V	500000 Cycles	48.5 mm	CCC CE CSA TUV UL	50 °C	-25 °C	DPST-NO	IP65 - Dust Tight Water Resistant	Off-On	24 V	Non-Illuminated
IDEC HW1S-2TF10	Screw Terminal	22.3 mm	8 A 10 A	2	Standard	110 V	500000 Cycles	48.5 mm	CCC CE CSA TUV UL	50 °C	-25 °C	SPST-NO	IP65 - Dust Tight Water Resistant	Off-On	24 V	Non-Illuminated

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 21.57
		5	$ 18.54
		10	$ 17.37
		25	$ 15.92
		50	$ 14.91
		100	$ 13.95
		250	$ 12.77
		500	$ 11.94
Newark	Each	1	$ 19.66
		5	$ 18.09
		10	$ 16.71
		25	$ 15.13
		50	$ 13.96

Description

General part information

HW1S-2T Series

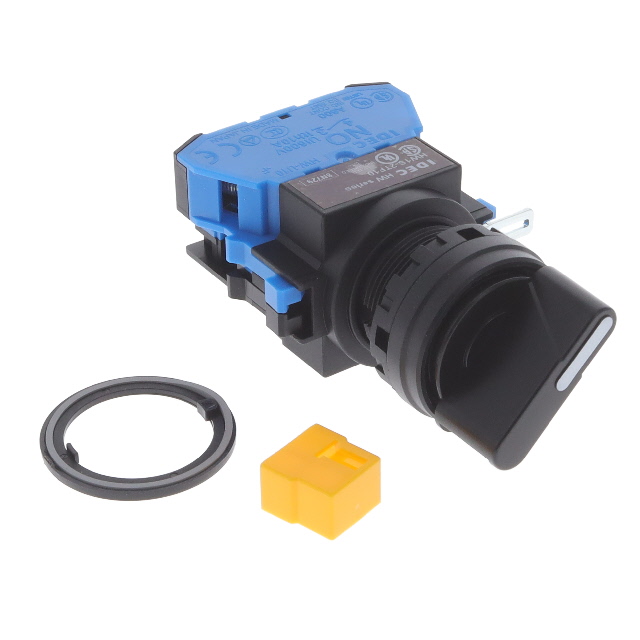

The HW1S-2TF10 is a 22mm single-pole 90° throw 2-position Selector Switch with maintained operation, knob handle and 1NO contacts. The assembled HW-series with plastic bezel.
