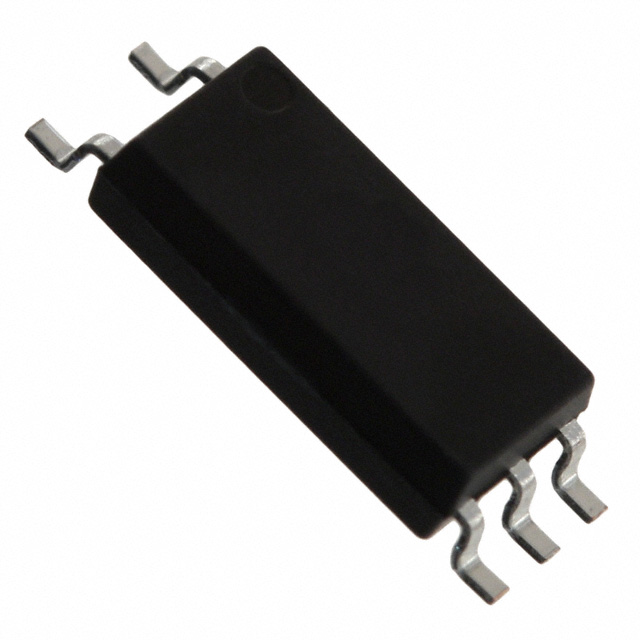

EL1116(TA)-VG

Active

Everlight Electronics Co Ltd

DC-IN 1-CH TRANSISTOR WITH BASE DC-OUT 5-PIN SOP T/R

Search across all available documentation for this part.

Active

Everlight Electronics Co Ltd

DC-IN 1-CH TRANSISTOR WITH BASE DC-OUT 5-PIN SOP T/R

Technical Specifications

Parameters and characteristics for this part

Specification	EL1116(TA)-VG

Current - DC Forward (If) (Max) [Max]	60 mA
Current - Output / Channel	50 mA
Current Transfer Ratio (Max)	300 %
Current Transfer Ratio (Min) [Min]	100 %
Input Type	DC
Mounting Type	Surface Mount
Number of Channels	1
Operating Temperature [Max]	110 °C
Operating Temperature [Min]	-55 °C
Package / Case	0.295 in, 7.5 mm Width
Package / Case	5 Leads, 6-SOIC
Rise / Fall Time (Typ) [custom]	3 µs
Rise / Fall Time (Typ) [custom]	2 µs
Supplier Device Package	5-SOP
Turn On / Turn Off Time (Typ)	4 µs, 3 µs
Vce Saturation (Max) [Max]	400 mV
Voltage - Forward (Vf) (Typ)	1.5 V

Part	Voltage - Forward (Vf) (Typ)	Turn On / Turn Off Time (Typ)	Current - DC Forward (If) (Max) [Max]	Package / Case	Package / Case	Number of Channels	Current - Output / Channel	Mounting Type	Current Transfer Ratio (Min) [Min]	Rise / Fall Time (Typ) [custom]	Rise / Fall Time (Typ) [custom]	Input Type	Operating Temperature [Min]	Operating Temperature [Max]	Supplier Device Package	Current Transfer Ratio (Max)	Vce Saturation (Max) [Max]
Everlight Electronics Co Ltd EL1116(TA)-G	1.5 V	3 µs 4 µs	60 mA	0.295 in 7.5 mm Width	5 Leads 6-SOIC	1	50 mA	Surface Mount	100 %	3 µs	2 µs	DC	-55 °C	110 °C	5-SOP	300 %	400 mV
Everlight Electronics Co Ltd EL1116(TA)-VG	1.5 V	3 µs 4 µs	60 mA	0.295 in 7.5 mm Width	5 Leads 6-SOIC	1	50 mA	Surface Mount	100 %	3 µs	2 µs	DC	-55 °C	110 °C	5-SOP	300 %	400 mV

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Optoisolator Transistor with Base Output 5000Vrms 1 Channel 5-SOP
