Technical Specifications
Parameters and characteristics for this part

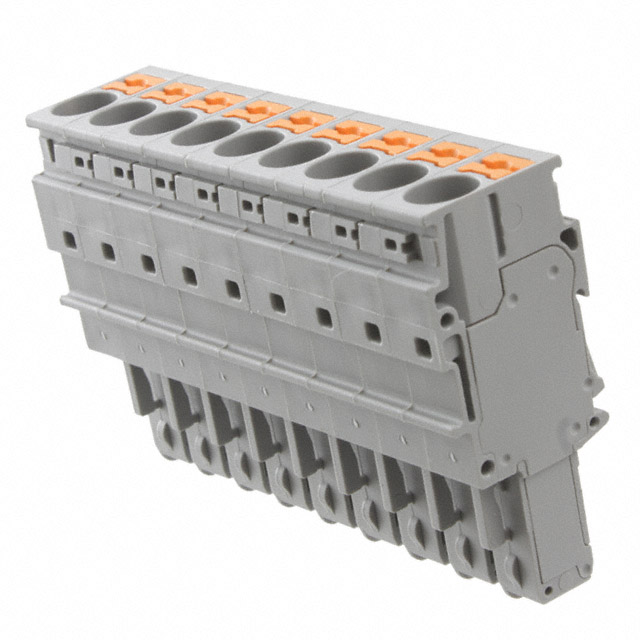

| Specification | 3061648 |
|---|---|
| Color | Gray |
| Current - IEC | 41 A |
| Current - UL | 40 A |
| Features | Interlocking (Side) |
| Housing Material | Polyamide (PA), Nylon |
| Insulation Height | 1.941 in |
| Insulation Height | 49.3 mm |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Free Hanging (In-Line) |
| Number of Levels | 1 |
| Number of Positions | 9 |
| Positions Per Level | 9 |
| Termination Style | Screwless - Push-In Spring |
| Type | Plug, Female Sockets |
| Voltage - IEC | 1 kV |
| Wire Gauge or Range - AWG [Max] | 20 AWG |
| Wire Gauge or Range - AWG [Min] | 8 AWG |
| Wire Gauge or Range - mm² [Max] | 10 mm² |
| Wire Gauge or Range - mm² [Min] | 0.5 mm² |
| Wire Strip Length | 12 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
PP-H Series
DIN Rail Terminal Blocks PP-H 6/ 1 GNYE
