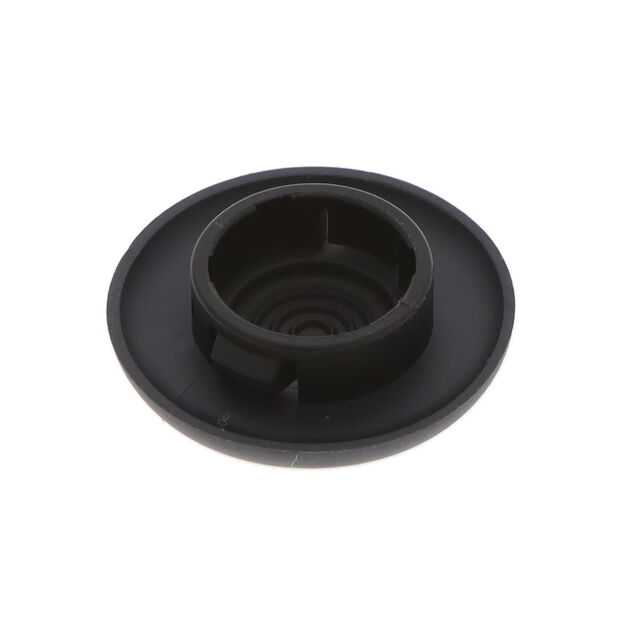

C2012

Active

Heyco Products Corporation

LTBP 625-063 BLACK

Deep-Dive with AI

Search across all available documentation for this part.

C2012

Active

Heyco Products Corporation

LTBP 625-063 BLACK

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	C2012

Bushing, Grommet Type	Grommet
Color	Black
For Use With/Related Products	Wires, Cable
Material	Polyamide (PA66), Nylon 6/6, Thermoplastic Elastomer (TPE)
Material Flammability Rating	UL94 HB
Panel Cutout Dimensions [diameter]	15.88 mm
Panel Cutout Dimensions [diameter]	0.625 in
Panel Thickness	0.063 in
Panel Thickness	1.6 mm

- Series

Part	Type	Outside Cable Diameter (Min) [Min] [diameter]	Outside Cable Diameter (Min) [Min] [diameter]	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Max) [Max] [diameter]	Thread Size	Color	Panel Hole Size	Panel Hole Size	Material	Ingress Protection	Operating Temperature [Min]	Operating Temperature [Max]	Thread Length	Thread Length	Includes	Material Flammability Rating	Bushing, Grommet Type	Panel Cutout Dimensions [diameter]	Panel Cutout Dimensions [diameter]	Panel Thickness	Panel Thickness	For Use With/Related Products	Opening Size [custom]	Opening Size [custom]	Mounting Type	Screw Size	Opening Size [diameter]	Opening Size	Panel Hole Size	Outside Cable Diameter (Min)	Panel Hole Size	Diameter - Inside	Diameter - Inside [diameter]
Heyco Products Corporation M8438	Cable Grip	0.59 in	14.99 mm	25.4 mm	1 "	1" NPT	Gray	1.327 in	33.7 mm	Polyamide (PA66) Nylon 6/6	IP68 - Dust Tight Waterproof	-40 °C	115 °C
Heyco Products Corporation M3211	Cable Grip	0.105 in	2.67 mm	8 mm	0.315 in	PG9	Gray	0.6 in	15.2 mm	Polyamide (PA66) Nylon 6/6	IP68 - Dust Tight Waterproof	-40 °C	115 °C	8.13 mm	0.32 in	Locknut
Heyco Products Corporation C2012							Black			Nylon 6/6 Polyamide (PA66) Thermoplastic Elastomer (TPE)							UL94 HB	Grommet	15.88 mm	0.625 in	0.063 in	1.6 mm	Cable Wires
Heyco Products Corporation S3376	Clamp P-Type							0.203 in	5.16 mm	Stainless Steel														9.65 mm	0.38 in	Fastener	#10
Heyco Products Corporation M4340	Cable Grip	0.17 in	4.32 mm	11.43 mm	0.45 in	M20	Black	0.787 in	20 mm	Polyamide (PA66) Nylon 6/6	IP68 - Dust Tight Waterproof	-40 °C	115 °C	10.41 mm	0.41 in	Locknut
Heyco Products Corporation S3374	Clamp P-Type							0.203 in	5.16 mm	Stainless Steel																Fastener	#10	0.25 in	6.35 mm
Heyco Products Corporation M4848	Cable Grip	0.59 in	14.99 mm	25.4 mm	1 "		Black	1.375 "	34.9 mm	Polyamide (PA66) Nylon 6/6		-18 °C	105 ░C			Strain Relief														1.375 "
Heyco Products Corporation M3454	Cable Grip	0.25 in		12.45 mm	0.49 in	PG21	Black	1.12 in	28.4 mm	Polyamide (PA66) Nylon 6/6	IP68 - Dust Tight Waterproof	-40 °C	115 °C	13.21 mm	0.52 in	Locknut															6.35 mm
Heyco Products Corporation M6106	Cable Grip	0.095 in				1/2" NPT	Silver		0.875 in 22.2 mm	Aluminum	IP68 - Dust Tight Waterproof	-40 °C	105 ░C	13.46 mm	0.53 "																2.41 mm	7/8
Heyco Products Corporation G1052							Black											Grommet	11.1 mm	0.437 in	0.063 in	1.6 mm	Cable Wires										6.35 mm	0.25 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 0.77
		5	$ 0.64
		10	$ 0.58
		25	$ 0.51
		50	$ 0.46
		100	$ 0.45
		250	$ 0.44
		500	$ 0.42
		1000	$ 0.39

Description

General part information

- Series

Circular - 0.625" (15.88mm) Grommet Black

Documents

Technical documentation and resources

No documents available
