SMBJP6KE24A-TP

Active

Micro Commercial Components

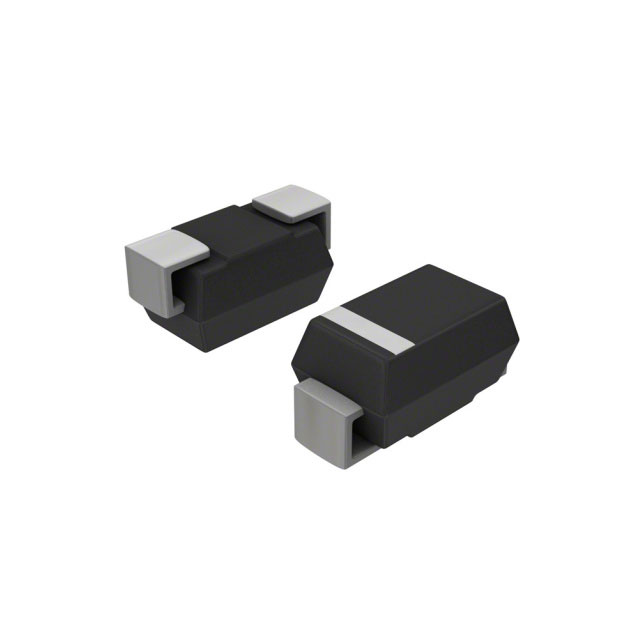

TVS DIODE 20.5VWM 33.2VC DO214AA

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsMCC Selection Guide Datasheet

SMBJP6KE24A-TP

Active

Micro Commercial Components

TVS DIODE 20.5VWM 33.2VC DO214AA

Deep-Dive with AI

DocumentsMCC Selection Guide Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SMBJP6KE24A-TP

Applications	General Purpose
Current - Peak Pulse (10/1000µs)	18.4 A
Mounting Type	Surface Mount
Operating Temperature [Max]	175 ░C
Operating Temperature [Min]	-55 °C
Package / Case	SMB, DO-214AA
Power - Peak Pulse	600 W
Power Line Protection	False
Supplier Device Package	DO-214AA (SMBJ)
Type	Zener
Unidirectional Channels [custom]	1
Voltage - Breakdown (Min) [Min]	22.8 V
Voltage - Clamping (Max) @ Ipp [Max]	33.2 V
Voltage - Reverse Standoff (Typ)	20.5 V

SMBJP6 Series

...

Part	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Bidirectional Channels [custom]	Voltage - Breakdown (Min) [Min]	Supplier Device Package	Supplier Device Package	Current - Peak Pulse (10/1000µs)	Type	Grade	Package / Case	Voltage - Clamping (Max) @ Ipp [Max]	Voltage - Reverse Standoff (Typ)	Power - Peak Pulse	Qualification	Applications	Unidirectional Channels [custom]	Voltage - Clamping (Max) @ Ipp
Micro Commercial Components SMBJP6KE16CAHE3-TP	Surface Mount	-55 °C	175 ░C	1	15.2 V	SMB	DO-214AA	27.1 A	Zener	Automotive	DO-214AA SMB	22.5 V	13.6 V	600 W	AEC-Q101
Micro Commercial Components SMBJP6KE24A-TP	Surface Mount	-55 °C	175 ░C		22.8 V		DO-214AA (SMBJ)	18.4 A	Zener		DO-214AA SMB	33.2 V	20.5 V	600 W		General Purpose	1
Micro Commercial Components SMBJP6KE20CA-TP	Surface Mount	-55 °C	175 ░C	1	19 V		DO-214AA (SMBJ)	22 A	Zener		DO-214AA SMB	27.7 V	17.1 V	600 W		General Purpose
Micro Commercial Components SMBJP6KE7.5CA-TP	Surface Mount	-55 °C	175 ░C	1	7.13 V		DO-214AA (SMBJ)	54 A	Zener		DO-214AA SMB	11.3 V	6.4 V	600 W		General Purpose
Micro Commercial Components SMBJP6KE540A-TP	Surface Mount	-65 °C	150 °C		513 V	SMB	DO-214AA	800 mA	Zener		DO-214AA SMB		459 V	600 W		General Purpose	1	740 V
Micro Commercial Components SMBJP6KE100A-TP	Surface Mount	-55 °C	175 ░C		95 V		DO-214AA (SMBJ)	4.5 A	Zener		DO-214AA SMB		85.5 V	600 W		General Purpose	1	137 V
Micro Commercial Components SMBJP6KE550A-TP	Surface Mount	-65 °C	150 °C		522.5 V	SMB	DO-214AA	800 mA	Zener		DO-214AA SMB		495 V	600 W		General Purpose	1	760 V
Micro Commercial Components SMBJP6KE36CAHE3-TP	Surface Mount	-55 °C	175 ░C	1	34.2 V	SMB	DO-214AA	12.2 A	Zener	Automotive	DO-214AA SMB	49.9 V	30.8 V	600 W	AEC-Q101
Micro Commercial Components SMBJP6KE180CA-TP	Surface Mount	-65 °C	150 °C	1	171 V	SMB	DO-214AA	2.5 A	Zener		DO-214AA SMB	246 V	154 V	600 W		General Purpose
Micro Commercial Components SMBJP6KE39AHE3-TP	Surface Mount	-55 °C	175 ░C		37.1 V	SMB	DO-214AA	11.3 A	Zener	Automotive	DO-214AA SMB		33.3 V	600 W	AEC-Q101		1	53.9 V
