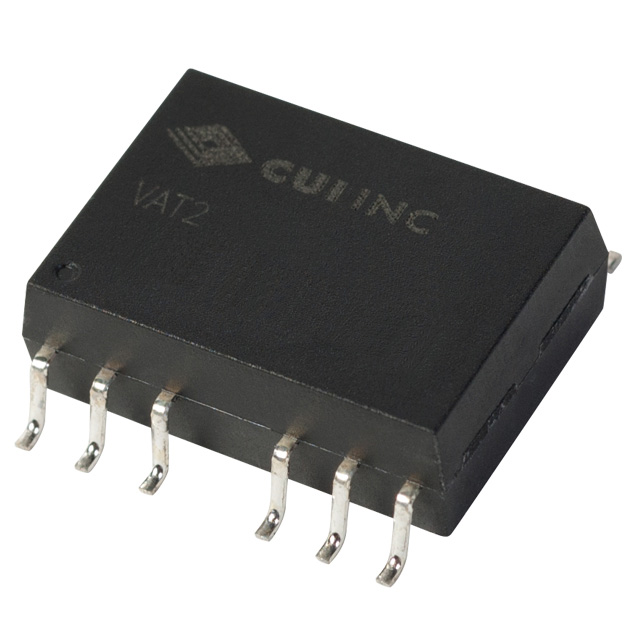

VAT2-S5-D15-SMT-TR

Obsolete

CUI Inc.

DC DC CONVERTER +/-15V 2W

Search across all available documentation for this part.

Obsolete

CUI Inc.

DC DC CONVERTER +/-15V 2W

Technical Specifications

Parameters and characteristics for this part

Part	Voltage - Input (Max) [Max]	Type	Voltage - Output 1	Number of Outputs	Features	Voltage - Isolation	Applications	Voltage - Output 2	Power (Watts)	Voltage - Input (Min) [Min]	Mounting Type	Package / Case	Package / Case	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Operating Temperature [Max]	Operating Temperature [Min]	Efficiency	Current - Output (Max)	Current - Output (Max)	Current - Output (Max)
CUI Inc. VAT2-S5-D5-SMT-TR	5.5 V	Isolated Module	5 V	2	SCP	1000 V	ITE (Commercial)	-5 V	2 W	4.5 V	Surface Mount	12	14-SMD Module	5.8 mm	17.8 mm	0.23 "	0.5 in	0.7 in	12.7 mm	85 °C	-40 °C
CUI Inc. VAT2-S5-D12-SMT-TR	5.5 V	Isolated Module	12 V	2	SCP	1000 V	ITE (Commercial)	-12 V	2 W	4.5 V	Surface Mount	12	14-SMD Module	5.8 mm	17.8 mm	0.23 "	0.5 in	0.7 in	12.7 mm	85 °C	-40 °C	84 %	83 mA	83 mA
CUI Inc. VAT2-S5-D15-SMT-TR	5.5 V	Isolated Module	15 V	2	SCP	1000 V	ITE (Commercial)	-15 V	2 W	4.5 V	Surface Mount	12	14-SMD Module	5.8 mm	17.8 mm	0.23 "	0.5 in	0.7 in	12.7 mm	85 °C	-40 °C			67 mA	67 mA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Isolated Module DC DC Converter 2 Output 15V -15V 67mA, 67mA 4.5V - 5.5V Input

Technical documentation and resources

No documents available
