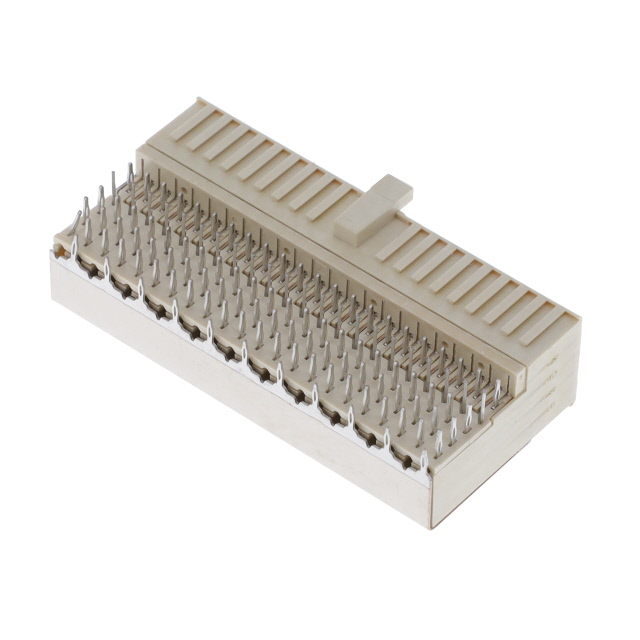

HM2R66PA5108N9LF

Active

Amphenol ICC (FCI)

CONN RECEPT 110POS 2MM PRESS-FIT

Search across all available documentation for this part.

Active

Amphenol ICC (FCI)

CONN RECEPT 110POS 2MM PRESS-FIT

Technical Specifications

Parameters and characteristics for this part

Specification	HM2R66PA5108N9LF

Connector Style	AB 22
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Current Rating (Amps)	1.5 A
Features	Upper Shield
Mounting Type	Through Hole, Right Angle, Board Edge
Number of Positions	110 positions
Number of Positions Loaded	All
Number of Rows	5
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch [x]	0.079 in
Pitch [x]	2 mm
Termination	Press-Fit
Voltage Rating	750 Vrms

Part	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Amps)	Pitch [x]	Pitch [x]	Connector Usage	Contact Finish	Mounting Type	Connector Type	Termination	Number of Rows	Number of Positions	Number of Positions Loaded	Voltage Rating	Contact Finish Thickness	Contact Finish Thickness	Features	Connector Style
Amphenol ICC (FCI) HM2R66PA5101N9LF	-55 °C	125 °C	1.5 A	0.079 in	2 mm	Backplane	Gold	Through Hole	Header Male Pins	Press-Fit
Amphenol ICC (FCI) HM2R66PA5108N9LF	-55 °C	125 °C	1.5 A	0.079 in	2 mm		Gold	Board Edge Right Angle Through Hole	Receptacle Female Sockets	Press-Fit	5	110 positions	All	750 Vrms	0.76 Ám	30 Áin	Upper Shield	AB 22
Amphenol ICC (FCI) HM2R66PA5100N9LF	-55 °C	125 °C	1.5 A	0.079 in	2 mm		Gold	Board Edge Right Angle Through Hole	Receptacle Female Sockets	Press-Fit	5	110 positions	All	750 Vrms	0.76 Ám	30 Áin		AB 22
Amphenol ICC (FCI) HM2R66PA5108ADLF

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

110 Position Receptacle, Female Sockets Connector 0.079" (2.00mm) Board Edge, Through Hole, Right Angle
