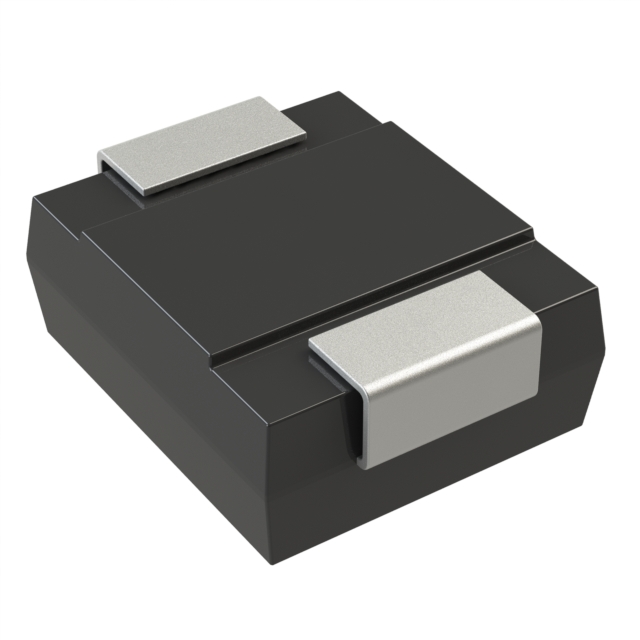

1.5SMC110CAHM3/I

Unknown

Vishay General Semiconductor - Diodes Division

TVS DIODE 94VWM 152VC DO214AB

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

1.5SMC110CAHM3/I

Unknown

Vishay General Semiconductor - Diodes Division

TVS DIODE 94VWM 152VC DO214AB

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	1.5SMC110CAHM3/I

Applications	Telecom
Bidirectional Channels [custom]	1
Current - Peak Pulse (10/1000µs)	9.9 A
Grade	Automotive
Mounting Type	Surface Mount
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-65 °C
Package / Case	SMC, DO-214AB
Power - Peak Pulse	1.5 kW
Power - Peak Pulse	1500 W
Power Line Protection	False
Qualification	AEC-Q101
Supplier Device Package	DO-214AB (SMC)
Type	Zener
Voltage - Breakdown (Min) [Min]	105 V
Voltage - Clamping (Max) @ Ipp [Max]	152 V
Voltage - Reverse Standoff (Typ)	94 V

1.5SMC110 Series

Part	Operating Temperature [Max]	Operating Temperature [Min]	Current - Peak Pulse (10/1000µs)	Qualification	Applications	Grade	Type	Power - Peak Pulse	Power - Peak Pulse	Voltage - Reverse Standoff (Typ)	Supplier Device Package	Unidirectional Channels [custom]	Mounting Type	Package / Case	Voltage - Clamping (Max) @ Ipp [Max]	Voltage - Breakdown (Min) [Min]	Bidirectional Channels [custom]
Vishay General Semiconductor - Diodes Division 1.5SMC110AHM3/H	150 °C	-65 °C	9.9 A	AEC-Q101	Telecom	Automotive	Zener	1.5 kW	1500 W	94 V	DO-214AB (SMC)	1	Surface Mount	DO-214AB SMC	152 V	105 V
Vishay General Semiconductor - Diodes Division 1.5SMC110CAHM3/H	150 °C	-65 °C	9.9 A	AEC-Q101	Telecom	Automotive	Zener	1.5 kW	1500 W	94 V	DO-214AB (SMC)		Surface Mount	DO-214AB SMC	152 V	105 V	1
Vishay General Semiconductor - Diodes Division 1.5SMC110A-E3/57T	150 °C	-65 °C	9.9 A		General Purpose		Zener	1.5 kW	1500 W	94 V	DO-214AB (SMCJ)	1	Surface Mount	DO-214AB SMC	152 V	105 V
Vishay General Semiconductor - Diodes Division 1.5SMC110AHM3_A/I	150 °C	-65 °C	9.9 A	AEC-Q101	Telecom	Automotive	Zener	1.5 kW	1500 W	94 V	DO-214AB (SMC)	1	Surface Mount	DO-214AB SMC	152 V	105 V
Vishay General Semiconductor - Diodes Division 1.5SMC110CAHE3/9AT	150 °C	-65 °C	9.9 A	AEC-Q101		Automotive	Zener	1.5 kW	1500 W	94 V	DO-214AB (SMCJ)		Surface Mount	DO-214AB SMC	152 V	105 V	1
Vishay General Semiconductor - Diodes Division 1.5SMC110AHE3/9AT	150 °C	-65 °C	9.9 A	AEC-Q101		Automotive	Zener	1.5 kW	1500 W	94 V	DO-214AB (SMCJ)	1	Surface Mount	DO-214AB SMC	152 V	105 V
Vishay General Semiconductor - Diodes Division 1.5SMC110CAHM3/I	150 °C	-65 °C	9.9 A	AEC-Q101	Telecom	Automotive	Zener	1.5 kW	1500 W	94 V	DO-214AB (SMC)		Surface Mount	DO-214AB SMC	152 V	105 V	1
Vishay General Semiconductor - Diodes Division 1.5SMC110CA-M3/57T	150 °C	-65 °C	9.9 A		General Purpose		Zener	1.5 kW	1500 W	94 V	DO-214AB (SMCJ)		Surface Mount	DO-214AB SMC	152 V	105 V	1
Vishay General Semiconductor - Diodes Division 1.5SMC110AHM3/I	150 °C	-65 °C	9.9 A	AEC-Q101	Telecom	Automotive	Zener	1.5 kW	1500 W	94 V	DO-214AB (SMC)	1	Surface Mount	DO-214AB SMC	152 V	105 V
Vishay General Semiconductor - Diodes Division 1.5SMC110A-E3/9AT	150 °C	-65 °C	9.9 A		General Purpose		Zener	1.5 kW	1500 W	94 V	DO-214AB (SMCJ)	1	Surface Mount	DO-214AB SMC	152 V	105 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

1.5SMC110 Series

152V Clamp 9.9A Ipp Tvs Diode Surface Mount DO-214AB (SMC)
