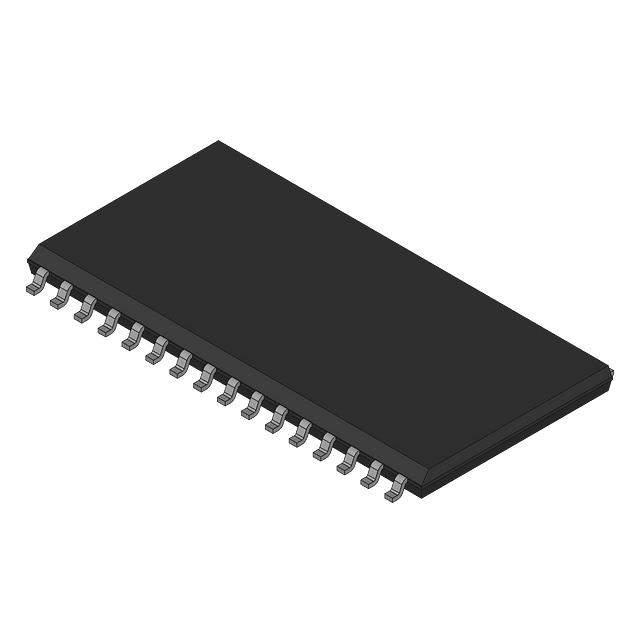

AT90PWM316-16SUR
ObsoleteAtmel
IC MCU 8BIT 16KB FLASH 32SOIC
Deep-Dive with AI
Search across all available documentation for this part.
AT90PWM316-16SUR
ObsoleteAtmel
IC MCU 8BIT 16KB FLASH 32SOIC
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | AT90PWM316-16SUR |
|---|---|
| Connectivity | SPI, UART/USART |
| Core Processor | AVR |
| Core Size | 8-Bit |
| Data Converters [custom] | 10 b, 10 b |
| Data Converters [custom] | 11, 1 |
| EEPROM Size | 512 x 8 |
| Mounting Type | Surface Mount |
| Number of I/O | 27 |
| Operating Temperature [Max] | 105 °C |
| Operating Temperature [Min] | -40 °C |
| Oscillator Type | Internal |
| Package / Case | 0.295 in |
| Package / Case | 7.5 mm |
| Package / Case | 32-SOIC |
| Program Memory Size | 16 KB |
| Program Memory Type | FLASH |
| RAM Size | 1 K |
| Speed | 16 MHz |
| Supplier Device Package | 32-SOIC |
| Voltage - Supply (Vcc/Vdd) [Max] | 5.5 V |
| Voltage - Supply (Vcc/Vdd) [Min] | 2.7 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 23 | $ 13.20 | |
Description
General part information
AT90PWM316 Series
AVR AVR® 90PWM Lighting Microcontroller IC 8-Bit 16MHz 16KB (16K x 8) FLASH 32-SOIC
Documents
Technical documentation and resources
No documents available
