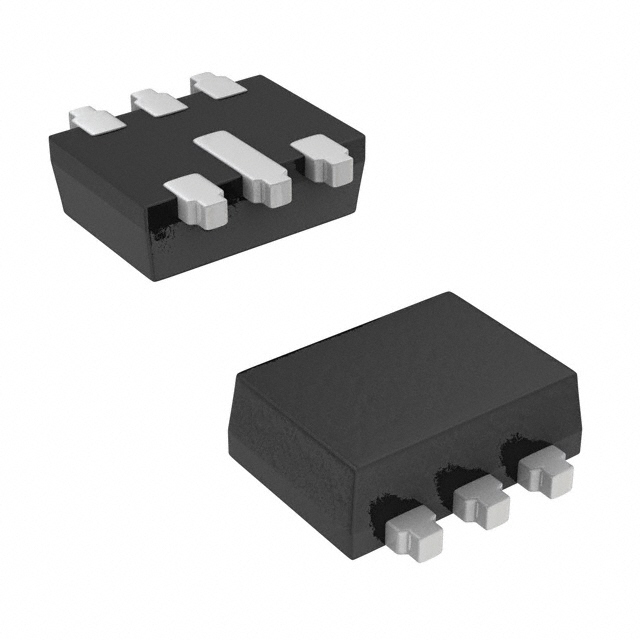

AO5800E

Obsolete

Alpha & Omega Semiconductor Inc.

MOSFET 2N-CH 60V SC89-6

Search across all available documentation for this part.

Obsolete

Alpha & Omega Semiconductor Inc.

MOSFET 2N-CH 60V SC89-6

Technical Specifications

Parameters and characteristics for this part

Specification	AO5800E

Configuration	2 N-Channel (Dual)
Drain to Source Voltage (Vdss)	60 V
FET Feature	Logic Level Gate
Input Capacitance (Ciss) (Max) @ Vds [Max]	50 pF
Mounting Type	Surface Mount
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-55 °C
Package / Case	SOT-666, SOT-563
Power - Max [Max]	400 mW
Rds On (Max) @ Id, Vgs	1.6 Ohm
Supplier Device Package	SC-89-6
Technology	MOSFET (Metal Oxide)
Vgs(th) (Max) @ Id	2.5 V

Part	Package / Case	FET Feature	Operating Temperature [Min]	Operating Temperature [Max]	Vgs(th) (Max) @ Id	Configuration	Input Capacitance (Ciss) (Max) @ Vds [Max]	Supplier Device Package	Power - Max [Max]	Rds On (Max) @ Id, Vgs	Drain to Source Voltage (Vdss)	Mounting Type	Technology
Alpha & Omega Semiconductor Inc. AO5800E	SOT-563 SOT-666	Logic Level Gate	-55 °C	150 °C	2.5 V	2 N-Channel (Dual)	50 pF	SC-89-6	400 mW	1.6 Ohm	60 V	Surface Mount	MOSFET (Metal Oxide)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Mosfet Array 60V 400mW Surface Mount SC-89-6
