060321000101JQTLSM

Active

Knowles Johanson Manufacturing

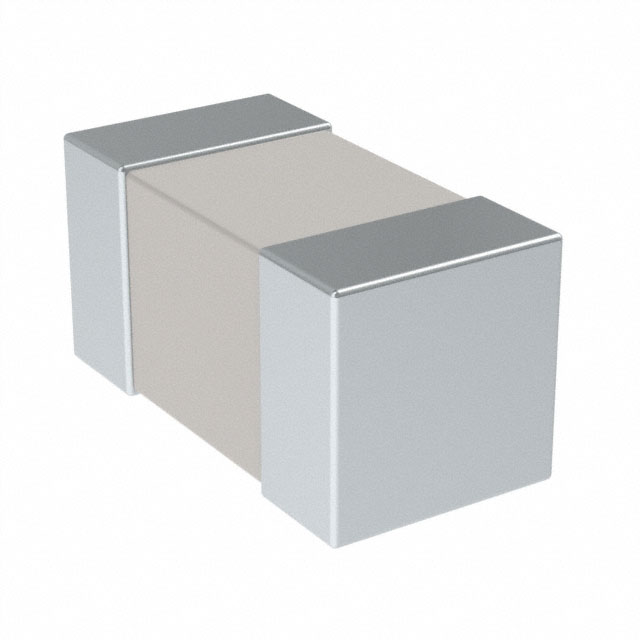

CAP CER 100PF 100V C0G/NP0 0603

Deep-Dive with AI

Search across all available documentation for this part.

060321000101JQTLSM

Active

Knowles Johanson Manufacturing

CAP CER 100PF 100V C0G/NP0 0603

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	060321000101JQTLSM

Applications	General Purpose
Capacitance	100 pF
Features	High Q, Non-Magnetic, Low Loss
Mounting Type	Surface Mount, MLCC
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Package / Case	0603 (1608 Metric)
Size / Dimension [x]	0.063 in
Size / Dimension [x]	1.6 mm
Size / Dimension [y]	0.8 mm
Size / Dimension [y]	0.031 in
Temperature Coefficient	NP0, C0G
Thickness (Max)	0.8 mm
Thickness (Max) [Max]	0.031 "
Tolerance	5 %
Voltage - Rated	100 V

06032 Series

Part	Tolerance	Voltage - Rated	Applications	Temperature Coefficient	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Package / Case	Capacitance	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Thickness (Max) [Max]	Thickness (Max)	Features
Knowles Johanson Manufacturing 060322002P20CQTLSM	0.25 pF	200 V	General Purpose	C0G NP0	-55 °C	125 °C	MLCC Surface Mount	0603 (1608 Metric)	2.2 pF	0.8 mm	0.063 in	1.6 mm	0.031 in	0.031 "	0.8 mm	High Q Low Loss Non-Magnetic
Knowles Johanson Manufacturing 060321000330FQTLSM	1 %	100 V	General Purpose	C0G NP0	-55 °C	125 °C	MLCC Surface Mount	0603 (1608 Metric)	33 pF	0.8 mm	0.063 in	1.6 mm	0.031 in	0.031 "	0.8 mm	High Q Low Loss Non-Magnetic
Knowles Johanson Manufacturing 060322004P70BQTLSM	0.1 pF	200 V	General Purpose	C0G NP0	-55 °C	125 °C	MLCC Surface Mount	0603 (1608 Metric)	4.7 pF	0.8 mm	0.063 in	1.6 mm	0.031 in	0.031 "	0.8 mm	High Q Low Loss Non-Magnetic
Knowles Johanson Manufacturing 060322003P90BQTLSM	0.1 pF	200 V	General Purpose	C0G NP0	-55 °C	125 °C	MLCC Surface Mount	0603 (1608 Metric)	3.9 pF	0.8 mm	0.063 in	1.6 mm	0.031 in	0.031 "	0.8 mm	High Q Low Loss Non-Magnetic
Knowles Johanson Manufacturing 060322005P60BQTLSM	0.1 pF	200 V	General Purpose	C0G NP0	-55 °C	125 °C	MLCC Surface Mount	0603 (1608 Metric)	5.6 pF	0.8 mm	0.063 in	1.6 mm	0.031 in	0.031 "	0.8 mm	High Q Low Loss Non-Magnetic
Knowles Johanson Manufacturing 060322001P00BQTLSM	0.1 pF	200 V	General Purpose	C0G NP0	-55 °C	125 °C	MLCC Surface Mount	0603 (1608 Metric)	1 pF	0.8 mm	0.063 in	1.6 mm	0.031 in	0.031 "	0.8 mm	High Q Low Loss Non-Magnetic
Knowles Johanson Manufacturing 060321000101JQTLSM	5 %	100 V	General Purpose	C0G NP0	-55 °C	125 °C	MLCC Surface Mount	0603 (1608 Metric)	100 pF	0.8 mm	0.063 in	1.6 mm	0.031 in	0.031 "	0.8 mm	High Q Low Loss Non-Magnetic
Knowles Johanson Manufacturing 060322002P70BQTLSM	0.1 pF	200 V	General Purpose	C0G NP0	-55 °C	125 °C	MLCC Surface Mount	0603 (1608 Metric)	2.7 pF	0.8 mm	0.063 in	1.6 mm	0.031 in	0.031 "	0.8 mm	High Q Low Loss Non-Magnetic
Knowles Johanson Manufacturing 060322000100JQTLSM	5 %	200 V	General Purpose	C0G NP0	-55 °C	125 °C	MLCC Surface Mount	0603 (1608 Metric)	10 pF	0.8 mm	0.063 in	1.6 mm	0.031 in	0.031 "	0.8 mm	High Q Low Loss Non-Magnetic
Knowles Johanson Manufacturing 060322003P30BQTLSM	0.1 pF	200 V	General Purpose	C0G NP0	-55 °C	125 °C	MLCC Surface Mount	0603 (1608 Metric)	3.3 pF	0.8 mm	0.063 in	1.6 mm	0.031 in	0.031 "	0.8 mm	High Q Low Loss Non-Magnetic

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 0.38
		10	$ 0.22
		50	$ 0.16
		100	$ 0.14
		500	$ 0.11
		1000	$ 0.10
	Digi-Reel®	1	$ 0.38
		10	$ 0.22
		50	$ 0.16
		100	$ 0.14
		500	$ 0.11
		1000	$ 0.10
	Tape & Reel (TR)	4000	$ 0.08
		8000	$ 0.08
		12000	$ 0.07
		20000	$ 0.07
		28000	$ 0.07
		40000	$ 0.07
		100000	$ 0.06

Description

General part information

06032 Series

100 pF ±5% 100V Ceramic Capacitor C0G, NP0 0603 (1608 Metric)

Documents

Technical documentation and resources

No documents available
