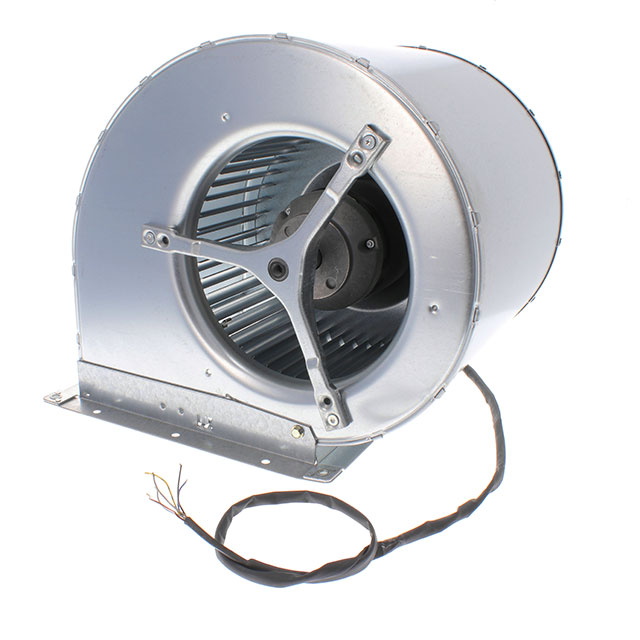

D4E225-CC01-30
Activeebm-papst Inc.
AC BLOWER CENTRIFUGAL BALL BEARING 230V 327 X 370 X 341MM
Deep-Dive with AI
Search across all available documentation for this part.
D4E225-CC01-30
Activeebm-papst Inc.
AC BLOWER CENTRIFUGAL BALL BEARING 230V 327 X 370 X 341MM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | D4E225-CC01-30 |
|---|---|
| Air Flow | 1156.6 CFM |
| Air Flow | 32.38 m³/min |
| Bearing Type | Ball |
| Current Rating (Amps) | 2.84 A |
| Fan Type | Blower, Centrifugal |
| Features | Capacitor, Thermal Overload Protection (TOP) |
| Ingress Protection | IP22 |
| Material - Blade | Steel |
| Material - Frame | Steel |
| Operating Temperature [Max] | 30 °C |
| Operating Temperature [Max] | 30 °C |
| Operating Temperature [Min] | -25 °C |
| Operating Temperature [Min] | -25 °C |
| Power (Watts) | 650 W |
| RPM | 1150 RPM |
| Size / Dimension | Rectangular/Rounded |
| Size / Dimension [x] | 370 mm |
| Size / Dimension [z] | 327 mm |
| Static Pressure | 100 Pa |
| Static Pressure | 0.401 in H2O |
| Termination | 6 Wire Leads |
| Voltage - Rated | 230 VAC |
| Width [y] | 341 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 903.00 | |
Description
General part information
D4E225 Series
Fan Blower, Centrifugal 230VAC Rectangular/Rounded - 370mm L x 327mm H Ball 1156.6 CFM (32.38m³/min) 6 Wire Leads
