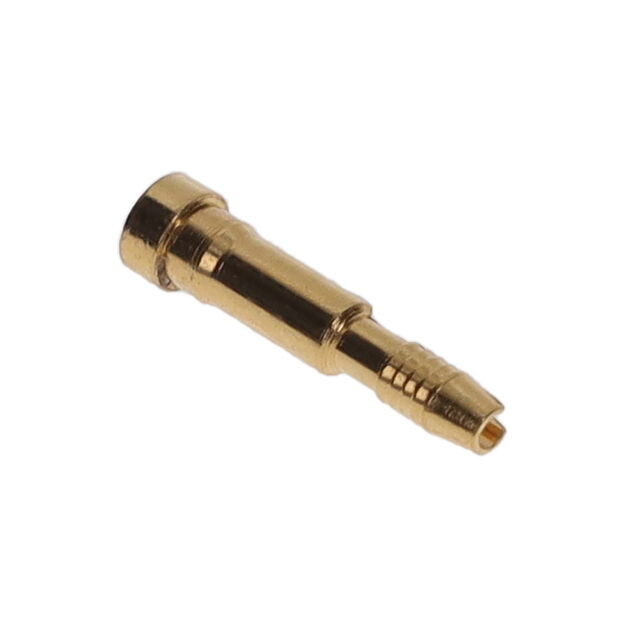

4612-0-31-15-30-14-04-0

Active

Mill-Max Manufacturing Corp.

CONN PIN RCPT

Search across all available documentation for this part.

Active

Mill-Max Manufacturing Corp.

CONN PIN RCPT

Technical Specifications

Parameters and characteristics for this part

Specification	4612-0-31-15-30-14-04-0

Accepts Pin Diameter [Max]	0.025 "
Accepts Pin Diameter [Max]	0.64 mm
Accepts Pin Diameter [Min]	0.015 "
Accepts Pin Diameter [Min]	0.38 mm
Board Thickness [Max]	2.54 mm
Board Thickness [Max]	0.1 in
Board Thickness [Min]	0.06 in
Board Thickness [Min]	1.52 mm
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Beryllium Copper
Flange Diameter [diameter]	1.83 mm
Flange Diameter [diameter]	0.072 in
Length - Overall [x]	0.293 in
Length - Overall [x]	7.44 mm
Mounting Hole Diameter [diameter]	0.04 in
Mounting Hole Diameter [diameter]	1.02 mm
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pin Hole Diameter [diameter]	0.79 mm
Pin Hole Diameter [diameter]	0.031 in
Socket Depth	3.81 mm
Socket Depth	0.15 in
Tail Diameter [diameter]	0.97 mm
Tail Diameter [diameter]	0.038 in
Tail Type	Standard Tail
Termination	Press-Fit

Part	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Min]	Flange Diameter [diameter]	Flange Diameter [diameter]	Socket Depth	Socket Depth	Contact Finish	Operating Temperature [Min]	Operating Temperature [Max]	Termination	Tail Type	Length - Overall [x]	Length - Overall [x]	Contact Material	Contact Finish Thickness	Contact Finish Thickness	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Board Thickness [Min]	Board Thickness [Max]	Board Thickness [Min]	Board Thickness [Max]	Tail Diameter [diameter]	Tail Diameter [diameter]	Pin Hole Diameter [diameter]	Pin Hole Diameter [diameter]
Mill-Max Manufacturing Corp. 4612-0-31-15-30-27-04-0	0.025 "	0.64 mm	0.015 "	0.38 mm	1.83 mm	0.072 in	3.81 mm	0.15 in	Gold	-55 °C	125 °C	Press-Fit	No Tail	0.293 in	7.44 mm	Beryllium Copper	0.76 Ám	30 Áin	0.04 in	1.02 mm	0.06 in	2.54 mm	1.52 mm	0.1 in
Mill-Max Manufacturing Corp. 4612-0-31-15-30-14-04-0	0.025 "	0.64 mm	0.015 "	0.38 mm	1.83 mm	0.072 in	3.81 mm	0.15 in	Gold	-55 °C	125 °C	Press-Fit	Standard Tail	0.293 in	7.44 mm	Beryllium Copper	0.25 Ám	10 Áin	0.04 in	1.02 mm	0.06 in	2.54 mm	1.52 mm	0.1 in	0.97 mm	0.038 in	0.79 mm	0.031 in
Mill-Max Manufacturing Corp. 4612-0-31-01-30-14-04-0	0.025 "	0.64 mm	0.015 "	0.38 mm	1.83 mm	0.072 in	3.81 mm	0.15 in	Gold	-55 °C	125 °C	Press-Fit	No Tail	0.293 in	7.44 mm	Beryllium Copper	0.25 Ám	10 Áin	0.04 in	1.02 mm	0.06 in	2.54 mm	1.52 mm	0.1 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Pin Receptacle Connector 0.015" ~ 0.025" (0.38mm ~ 0.64mm) Standard Tail Press-Fit
