09210252701

Active

HARTING Technology Group

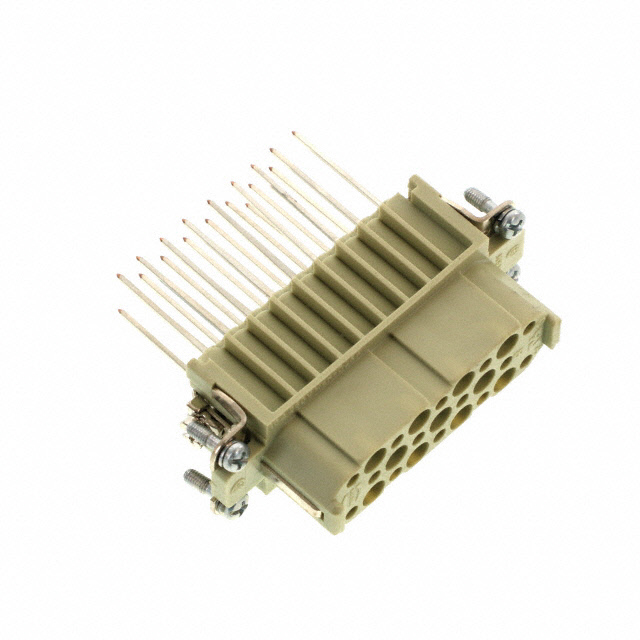

INSERT FEMALE 25P+1GND WIRE WRAP

Search across all available documentation for this part.

Active

HARTING Technology Group

INSERT FEMALE 25P+1GND WIRE WRAP

Technical Specifications

Parameters and characteristics for this part

Specification	09210252701

Contact Material	Copper Alloy
Current Rating (Amps)	10 A
Gender	Female
Housing Material	Polyamide (PA), Nylon
Material Flammability Rating	UL94 HB
Number of Positions	Ground
Number of Positions	25
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Size	16 A
Termination Style	Wire Wrap
Voltage Rating	250 VDC

Part	Current Rating (Amps)	Voltage Rating	Operating Temperature [Max]	Operating Temperature [Min]	Gender	Contact Material	Size	Material Flammability Rating	Termination Style	Housing Material	Number of Positions	Number of Positions
HARTING Technology Group 09210252701	10 A	250 VDC	125 °C	-40 °C	Female	Copper Alloy	16 A	UL94 HB	Wire Wrap	Polyamide (PA) Nylon	Ground	25

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Female Insert 25+Ground Position Wire Wrap
