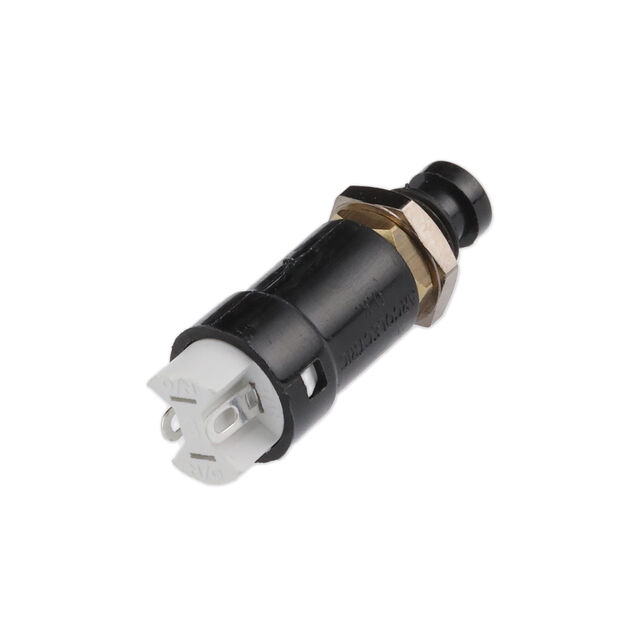

T0918SOAAG
ActiveBULGIN LIMITED
PUSHBUTTON SW, SPST-NC, 0.5A/250V, PANEL ROHS COMPLIANT: YES
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
T0918SOAAG
ActiveBULGIN LIMITED
PUSHBUTTON SW, SPST-NC, 0.5A/250V, PANEL ROHS COMPLIANT: YES
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | T0918SOAAG |
|---|---|
| Actuator Marking | No Marking |
| Actuator Type | Round, Button |
| Circuit | SPST-NC |
| Current Rating (Amps) | 500 mA |
| Mounting Type | Panel Mount, Rear |
| Panel Cutout Dimensions [diameter] | 7.1 mm |
| Switch Function | On-Mom |
| Termination Style | Solder Lug |
| Type | Standard |
| Voltage Rating - AC | 250 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Newark | Each | 1 | $ 4.99 | |
| 10 | $ 4.53 | |||
| 25 | $ 4.15 | |||
| 50 | $ 3.83 | |||
| 100 | $ 3.57 | |||
| 250 | $ 3.33 | |||
| 500 | $ 3.11 | |||
| 1000 | $ 2.94 | |||
Description
General part information
T0918SO Series
Pushbutton Switch SPST-NC Standard Panel Mount, Rear
