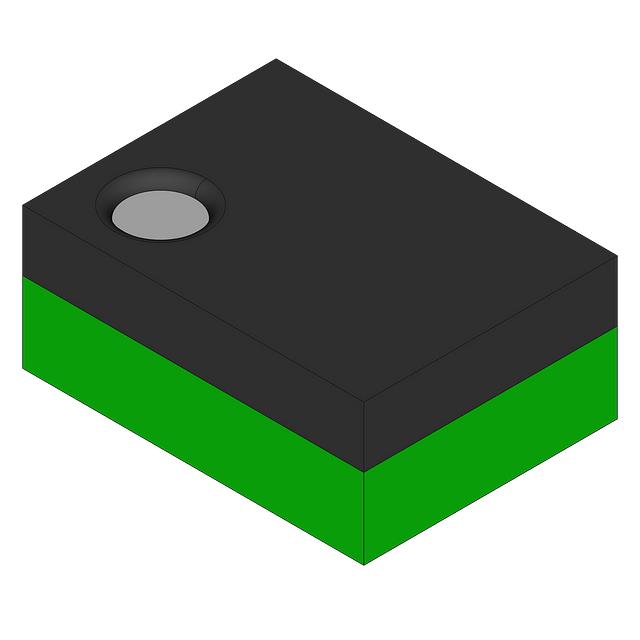

LM3671TLX-1.2/NOPB

Active

National Semiconductor

IC REG BUCK 1.2V 600MA 5DSBGA

Search across all available documentation for this part.

Active

National Semiconductor

IC REG BUCK 1.2V 600MA 5DSBGA

Technical Specifications

Parameters and characteristics for this part

Part	Current - Output	Voltage - Output (Min/Fixed)	Topology	Supplier Device Package	Package / Case	Number of Outputs	Output Configuration	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Input (Min) [Min]	Function	Frequency - Switching	Voltage - Input (Max) [Max]	Output Type
National Semiconductor LM3671MF-1.6	600 mA	1.6 V	Buck	SOT-23-5	SC-74A SOT-753	1	Positive	Surface Mount	85 °C	-40 °C	2.7 V	Step-Down	2 MHz	5.5 V	1.81 mOhm
National Semiconductor LM3671TLX-1.2/NOPB	600 mA	1.2 V	Buck	5-DSBGA (1.5x1.2)		1	Positive	Surface Mount	85 °C	-40 °C	2.7 V	Step-Down	2 MHz	5.5 V	1.81 mOhm
National Semiconductor LM3671LC-1.6/NOPB	600 mA	1.6 V	Buck	6-USON (2x2)	6-UFDFN	1	Positive	Surface Mount	85 °C	-40 °C	2.7 V	Step-Down	2 MHz	5.5 V	1.81 mOhm
National Semiconductor LM3671MF-1.6/NOPB	600 mA	1.6 V	Buck	SOT-23-5	SC-74A SOT-753	1	Positive	Surface Mount	85 °C	-40 °C	2.7 V	Step-Down	2 MHz	5.5 V	1.81 mOhm
National Semiconductor LM3671LC-1.8	600 mA	1.8 V	Buck	6-USON (2x2)	6-UFDFN	1	Positive	Surface Mount	85 °C	-40 °C	2.7 V	Step-Down	2 MHz	5.5 V	1.81 mOhm
National Semiconductor LM3671MF-2.8/NOPB	600 mA	2.8 V	Buck	SOT-23-5	SC-74A SOT-753	1	Positive	Surface Mount	85 °C	-40 °C	2.7 V	Step-Down	2 MHz	5.5 V	1.81 mOhm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Buck Switching Regulator IC Positive Fixed 1.2V 1 Output 600mA 5-WFBGA, DSBGA

Technical documentation and resources

No documents available
